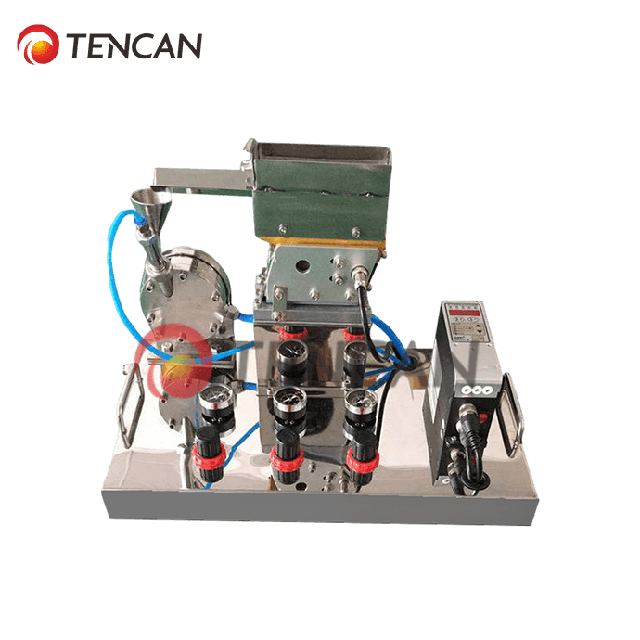

Mini Air Flow Pulverizer
Model QL-1
Overview
Mini Air Flow Pulverizer supplied by Changsha Tianchuang Powder Technology Co., Ltd. Key published specifications: Items Technical Parameters; Power Supply 380V-50Hz 3 Phase; Power Consumption 5.5KW/hr; Feeding Pressure 0.3~0.4MPa. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Items | Technical Parameters |
|---|---|
| Power Supply | 380V-50Hz 3 Phase |
| Power Consumption | 5.5KW/hr |
| Feeding Pressure | 0.3~0.4MPa |
| Pulverizing Pressure | 0.6~0.7MPa |
| Air Flow Volume | 0.4M³/min |
| Capacity | 0.5-200g/hr |
| Feed Size | More than 100 meshes |
| Fineness of Output | Average particle size ＜ 5 μm |
