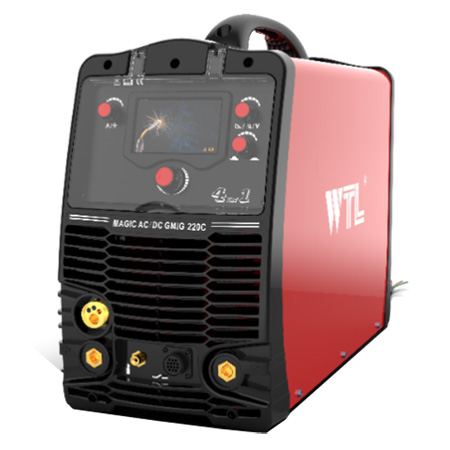

MIG Welder
Model MAGIC AC/DC GMIG 220C
Overview
MIG Welder supplied by ETW International Inc. Key published specifications: Weldable Metals Aluminum; Input Voltage 110/115/120 V; Input Phase 1-Phase; Input Hz 50 / 60 Hz. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Weldable Metals | Aluminum |
|---|---|
| Input Voltage | 110/115/120 V |
| Input Phase | 1-Phase |
| Input Hz | 50 / 60 Hz |
| Current Type | AC / DC |
| Max Open Circuit Voltage | 45 VDC(Controlled) |
| Cable Feed Speed | 3 m/min - 25 m/min |
| Portability | Handle(s) |
| Weld Output | CC / CV |
| Net Width | 275mm |
| Net Height | 500mm |
| Net Length | 660mm |
| Net Weight | 30kg (2 rolls, 15kg cable feeder) |
