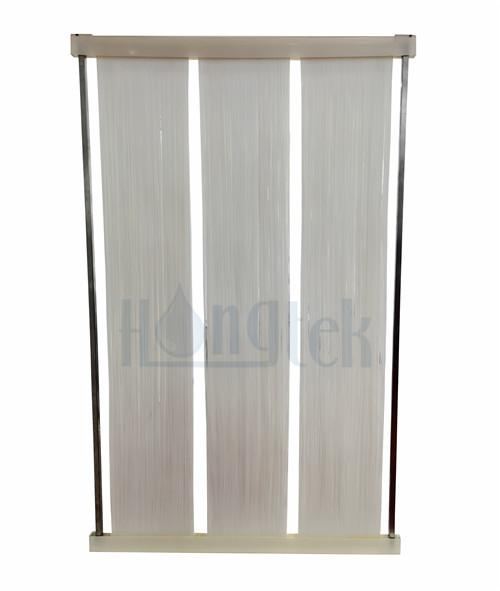

MBR30 Series Reinforced PVDF MBR Membrane Module for Wastewater Treatment
Overview
MBR30 Series Reinforced PVDF MBR Membrane Module for Wastewater Treatment supplied by Hongtek Filtration Co., Ltd. Listed under Filter Cartridges. Key published specifications: Module MBR30; Element size 1250x30x2000mm; Membrane material Reinforced Modified PVDF; Active membrane area 30m². Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Module | MBR30 |
|---|---|
| Element size | 1250x30x2000mm |
| Membrane material | Reinforced Modified PVDF |
| Active membrane area | 30m² |
| ID/OD of hollow fiber | 1.0mm/2.2mm |
| MWCO | 200000 Dalton |
| Filtration rating | 0.1 micron |
| Sealing material | Epoxy Resins + Polyurethane (PU) |
| Material of housing | ABS |
| Connector Size | DN20 |
| Ultrafiltrate turbidity | ≤1NTU |
| Ultrafiltrate TSS | ≤1mg/L |
| Operating Flux | 10-25L/m².h |
| Backwashing flux | 30-60L/m².h |
| PH | 5-9 (Washing 2-12) |
| Backwashing Pressure | ≤ 0.1MPa |
| Maximum Operating Pressure | Negative 50KPa |
| Suggested Operating Pressure | Negative 10KPa to -30KPa |
| Chemical Enhanced Backwash(CEB) | When TMP reaches 50kpa (every 2-4days) |
