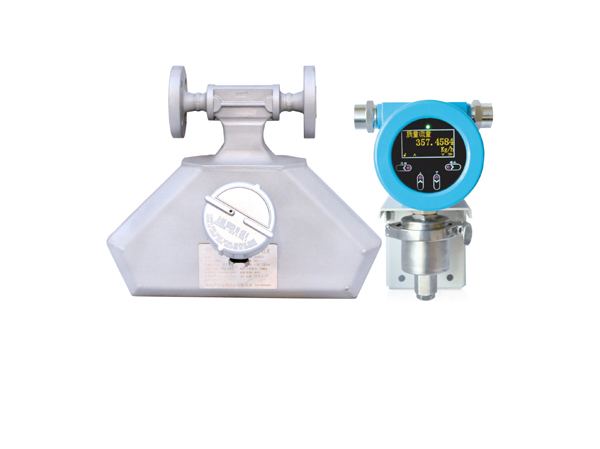

Manufacturer of intelligent liquid mass flowmeter
Overview
Manufacturer of intelligent liquid mass flowmeter, from Zhiyan Flowmeter Co., Ltd in Shanghai. Published figures include accuracy ±0.3%-2%F.S, linearity ±0.2~0.3%F.S and repeatability ±0.2%F.S.
Technical specifications
| accuracy | ±0.3%-2%F.S |
|---|---|
| linearity | ±0.2~0.3%F.S |
| repeatability | ±0.2%F.S |
| Response time | Electrical characteristics: 10sec Liquid characteristics: (1~4) sec |
| Working pressure differential | Working pressure difference 0.1~0.5MPa |
| Withstand voltage | 2.0MPa |
| Digital quantity | RS485 MODBUS agreement |
| Electrical connection | DB15 |
| Leakage rate | 1×10^-8 SCCSHe |
| Base material | 316L Stainless steel |
| Sealing material | Fluororubber, butadiene, neoprene |
| Gas connection | 74° Taper external thread M18*1.5 |
| Range accuracy | 1% ● Repeatability: 0.2% |
| Range ratio | 100:1 ● Base material: 316L |
| Flow range | 2ml~20L/min ● Preheating time: 200ms |
| Working temperature | 10-50 ℃ ● Pressure resistance: 2MPa |
| Signal | RS-485/PROFIBUS ● Type: Digital Display |
