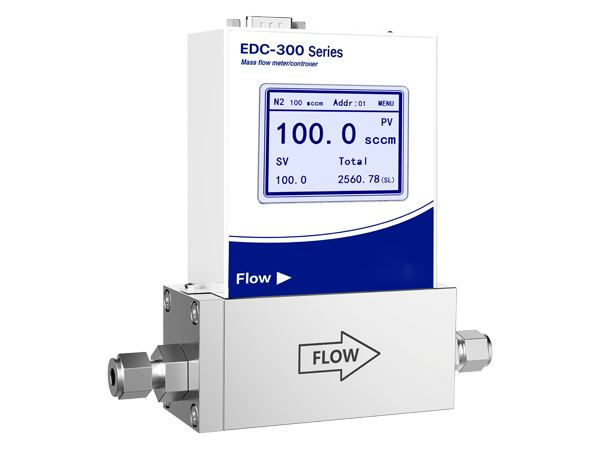

Manufacturer of digital micro gas mass flowmeter
Overview
Zhiyan Flowmeter Co., Ltd in Shanghai lists Manufacturer of digital micro gas mass flowmeter. Published figures include accuracy 1.5%F.S, linearity 0.5~1.5%F.S and repeatability ±0.2%F.S.
Technical specifications
| accuracy | 1.5%F.S |
|---|---|
| linearity | 0.5~1.5%F.S |
| repeatability | ±0.2%F.S |
| Response time | Electrical characteristics: 10sec liquid characteristics：（1~4）sec |
| Withstand voltage | 3MPa |
| Power supply | DC +15V，flowmeter＜400mA |
| Electrical connection | DB15 |
| Leakage rate | 1×10^-8 SCCSHe |
| Base material | 316L Stainless steel |
| Sealing material | Fluororubber, butadiene, neoprene |
| Range accuracy | 1% ● Repeatability: 0.2% |
| Range ratio | 100:1 ● Base material: 316L |
| Flow range | 2ml~3000L/min ● Calibration gas: nitrogen |
| Working temperature | 0-70 ℃ ● Voltage resistance: 3MPA |
| Signal | RS-485/PROFIBUS ● Type: Digital, Analog (optional) |
