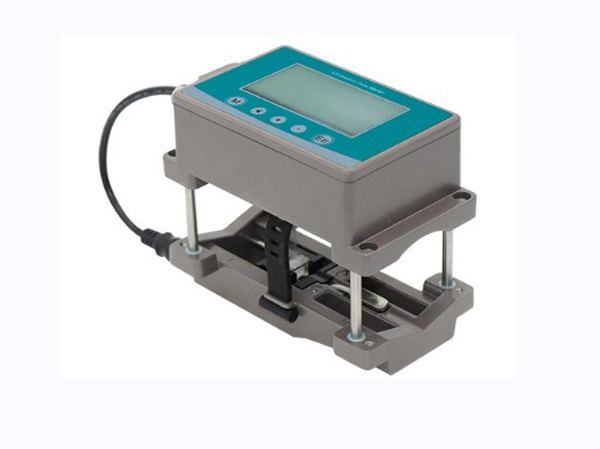

Manufacturer of clamp type ultrasonic flowmeter
Overview
Manufacturer of clamp type ultrasonic flowmeter, from Zhiyan Flowmeter Co., Ltd in Shanghai. Applicable pipe diameter DN15-DN40（1/2“ -1 1/2 ”）, precision ±1% of the measured value and flow range ±0.1m/s～±5m/s are among the specifications published.
Technical specifications
| Applicable pipe diameter | DN15-DN40（1/2“ -1 1/2 ”） |
|---|---|
| precision | ±1% of the measured value |
| Flow range | ±0.1m/s～±5m/s |
| Measurable liquid | Single medium liquid |
| Power source | 10-24V VDC |
| Data storage cycle | 300ms |
| Output signal | 4-20mA，OCT（selectable） |
| Output mode | RS485 |
| humidness | 35-85% relative humidity (non-condensing) |
| Ambient temperature | -10至60° C（non-freezing） |
| Class of protection | IP65 |
