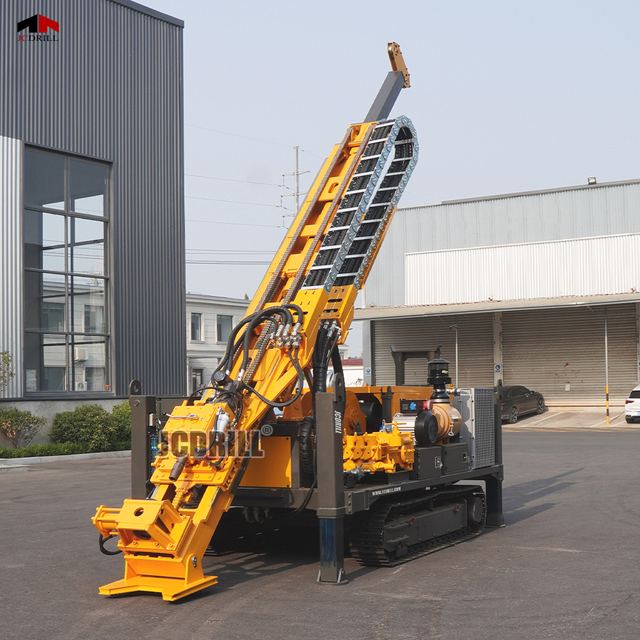

Manual Remote Control Operation Core Drill Rig with 450-1300N.M. Torque and 350-700-800m Drill Depth
Model JCD1000S
Overview
Manual Remote Control Operation Core Drill Rig with 450-1300N.M. Torque and 350-700-800m Drill Depth supplied by Beijing Jincheng Mining Technology Co., Ltd. Listed under Drilling Rigs. Key published specifications: Flow 0-120L/MIN; Operation Type Manual & Remote Control; Lifting Capacity 600kg; Engine Brand YUCHAI. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Flow | 0-120L/MIN |
|---|---|
| Operation Type | Manual & Remote Control |
| Lifting Capacity | 600kg |
| Engine Brand | YUCHAI |
| Walking Speed | 3.5km/h |
| Engine Type | Turbocharger |
| Mud Pump Model | BW-120 |
| Drill Depth | 350-700-800m |
| Feeding Stroke | 1900mm |
| Drilling Capacity | HTW-NTW-BTW |
| Weight | 5/6 Ton |
| Transport Size | 4200*2050*2300mm |
| Torque | 450-1300N.M. |
| Product Category | Core Drill Rig |
| Rated Speed | 2400RPM |
| Certification | ISO,CE |
| Speed | 1300RPM |
