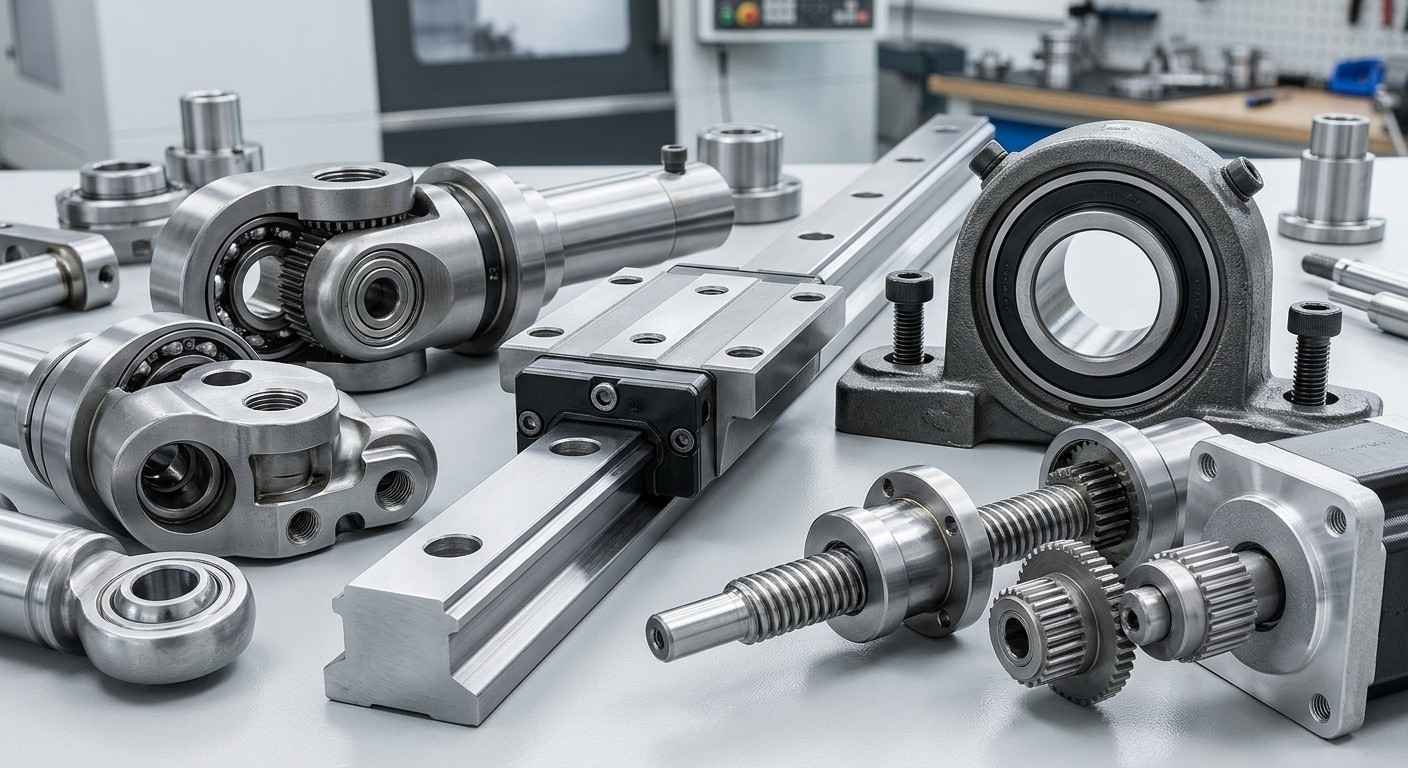

Machine Parts
Overview
Machine Parts, listed by MetalWorks Plus in Shenzhen, Guangdong. The listing gives maximum part size 2000 × 1000 × 500 mm, minimum wall thickness 0.5 mm metal and minimum hole diameter 0.5 mm.
Technical specifications
| Maximum part size | 2000 × 1000 × 500 mm |
|---|---|
| Minimum wall thickness | 0.5 mm metal |
| Minimum hole diameter | 0.5 mm |
| Maximum hole depth | 10 × diameter |
| Internal corner radius | ≥ 0.5 mm |
| Thread range | M1 – M64 |
| Tightest bore fit | H7 |
| Keyways & splines | DIN 5480 / ANSI B92.1 |
| Material | 4140 / 4340 Alloy Steel |
| Gear teeth | hard face, tough core |
