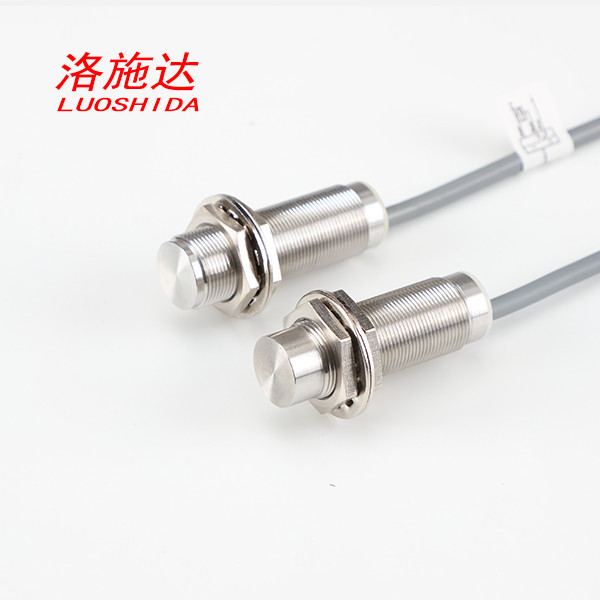

M18 DC Stainless Steel Cylindrical Inductive Metal Sensor

M18 DC Stainless Steel Cylindrical Inductive Metal Sensor

Overview

M18 DC Stainless Steel Cylindrical Inductive Metal Sensor supplied by Luoshida Sensor (dongguan) Co., Ltd. Listed under Proximity Sensors. Key published specifications: Certification CE ROHS; Material Stainless Steel; Item M18*54mm; Output Type NPN PNP NO NC. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

CertificationCE ROHS
MaterialStainless Steel
ItemM18*54mm
Output TypeNPN PNP NO NC
Voltage10-30VDC
Protection GradeIP67
SizeM18*55mm
Housing MaterialStainless steel
With or Without LED● with LED
Operating Voltage10-30VDC
No Load Current<10mA
Max.Load Current150mA
Leakage Current<0.01mA
Voltage Drop<1.5V
Switching Hysteresis<15%(Sr)
Repeat Accuracy<3%/<5%(Sr) <5%(Sr)
Protection CategoryIP67
Operating Temperature-25°C- +70°C
Temperature Drift<10%(Sr)
Short Circuit ProtectionYES
Overload Trip Point180mA
Shock/VibrationIEC 60947-5-2,Part7.4.1 / IEC 60947-5-2,Part7.4.2
Material Active FaceStainless steel
ConnectionD5 3*0.34 PUR 2M
SeriesM18 Metal Face Inductive proximity sensor
Mountingshielded/Non-shielded
Sensing Distance Sn(mm)5mm/8mm
