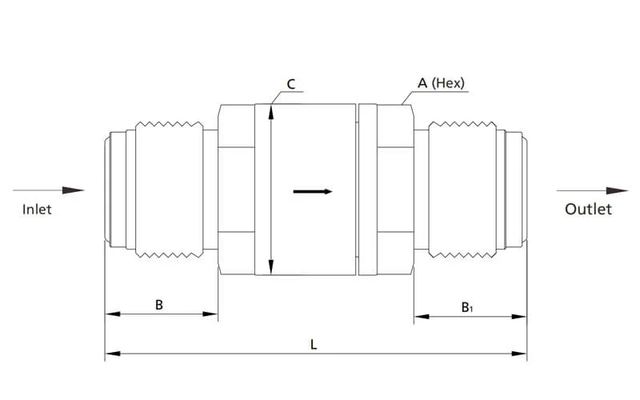

Low Pressure Medium Flow Check Valves
Overview
Low Pressure Medium Flow Check Valves supplied by Fluid System Fitting Manufacture. Key published specifications: Orifice Size 10.3mm; Max. Working Pressure 145 psig (10 bar); Working Temperature 14 ~ 176 °F (-10 ~ 80 °C); Nominal Cracking Pressure 1/3 psig (0.02 bar). Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Orifice Size | 10.3mm |
|---|---|
| Max. Working Pressure | 145 psig (10 bar) |
| Working Temperature | 14 ~ 176 °F (-10 ~ 80 °C) |
| Nominal Cracking Pressure | 1/3 psig (0.02 bar) |
| Cracking Pressure | ≤0.33 psig (0.023 bar) |
| Reseal Pressure | ≤9.95 psig (0.686 bar) |
