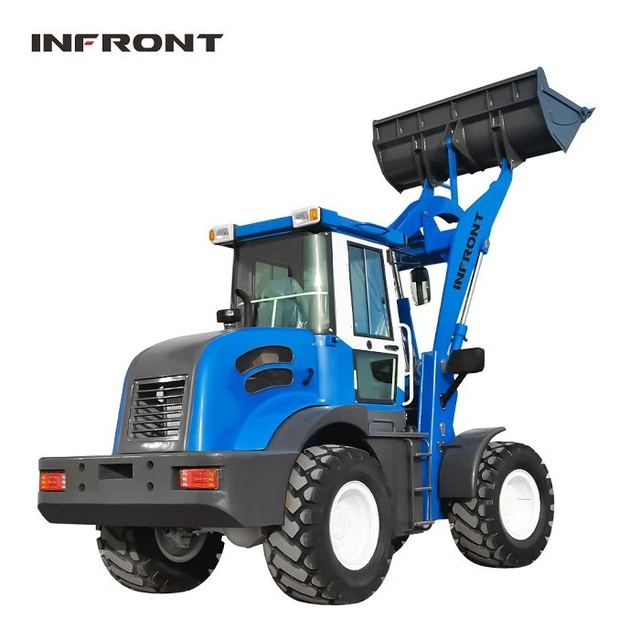

Loader Min
Overview
Loader Min, listed under Loaders by Shandong Infront Machinery Co., Ltd in Jining, Shandong. Published figures include overall weight 5500kg, rated bucket capacity 1.3m³ and maximum tractive force ≥54KN.
Technical specifications
| Overall weight | 5500kg |
|---|---|
| Rated bucket capacity | 1.3m³ |
| Maximum tractive force | ≥54KN |
| Maximum breakout force | ≥45.4KN |
| Maximum dump height | 3300mm |
| Optional maximum dump height | 3500mm |
| Overall dimension (L×W×H) | 5890×2000×2850mm |
| Minimum turning radius | 5330mm |
| Optional model | YTO/YUCHAI/CUMMINS/YANMAR/KOHLER engine |
| Type | Vertical, in-line, water cooled, 4-stroke diesel engine |
| Rated power | 65KW |
| Rated speed | 2200rpm-2400rpm |
| Engine starting mode | Electric |
| Gear shift | 2 forward shift 2 reverse shift |
| Maximum speed | 25km/h |
| Decelerating mode | Single stage planetary type |
| Wheel base (mm) | 2400mm |
| Wheel tread | 1640mm |
| Ground clearance | 310mm |
| Driving mode | Four-wheel full hydraulic drive |
| Rated loading | 2600kg |
