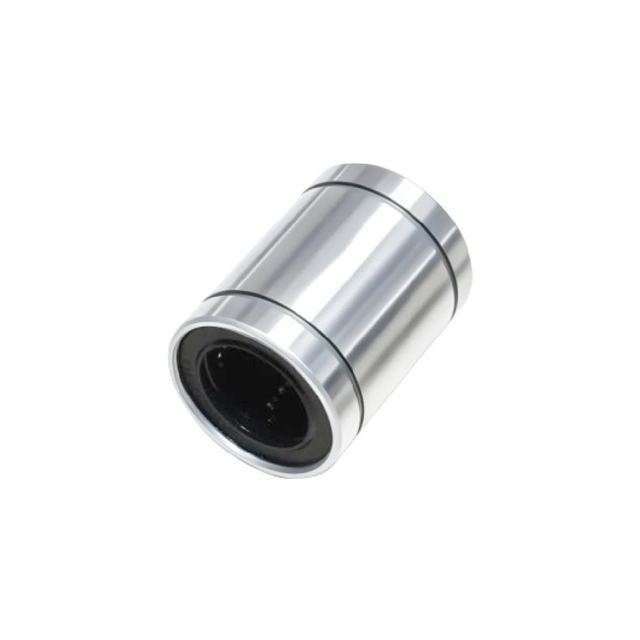

LME30UU
Model LME30UU
Overview
Zhejiang Siqiang Bearing Manufacturing Co., Ltd in Lishui, Zhejiang lists LME30UU. Type Standard, weight 325g and bore diameter (d) 30mm are among the specifications published.
Technical specifications
| Type | Standard |
|---|---|
| Weight | 325g |
| Bore diameter (d) | 30mm |
| Outer diameter (D) | 47mm (tolerance: 0 / -11μm) |
| Length (L) | 68mm (tolerance: 0 / -200μm) |
| Dynamic load rating C | 320N |
| Static load rating C₀ | 1570N |
