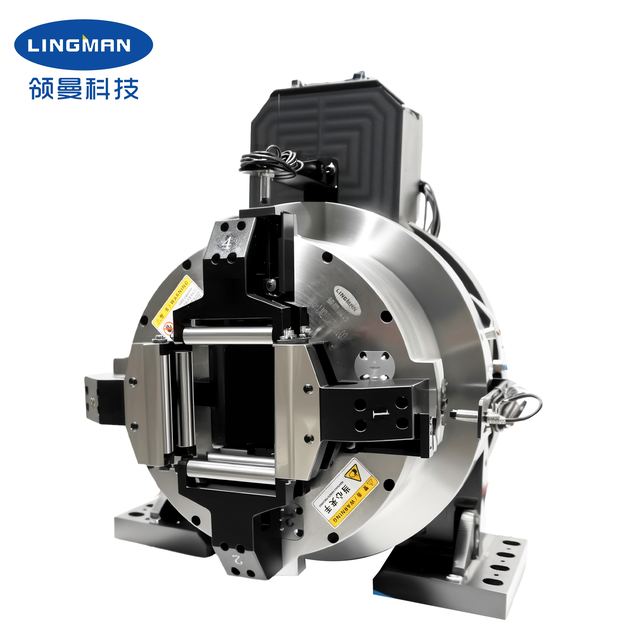

Lingman High Accuracy Double-sided Laser Chuck with Full-length Design for CNC Lathe
Model F130DF
Overview
Lingman High Accuracy Double-sided Laser Chuck with Full-length Design for CNC Lathe, listed under CNC Lathe by Lingman Machinery Technology (Changzhou) Co., Ltd in Changzhou, Jiangsu. Published figures include rotational inertia 3.5kg.㎡, diameter stroke 124mm( 6- 130mm) and clamping force 1.2KN(0.6MPa).
Technical specifications
| Rotational inertia | 3.5kg.㎡ |
|---|---|
| Diameter stroke | 124mm( 6- 130mm) |
| Clamping force | 1.2KN(0.6MPa) |
| Working pressure | 0.4-0.9MPa |
| Centering aperture | 130X130mm |
| Central height | 250mm |
| Maximum rotating diameter | 430mm |
| Whole unit weight | 248Kg |
| Rotating part weight | 146Kg |
