Overview

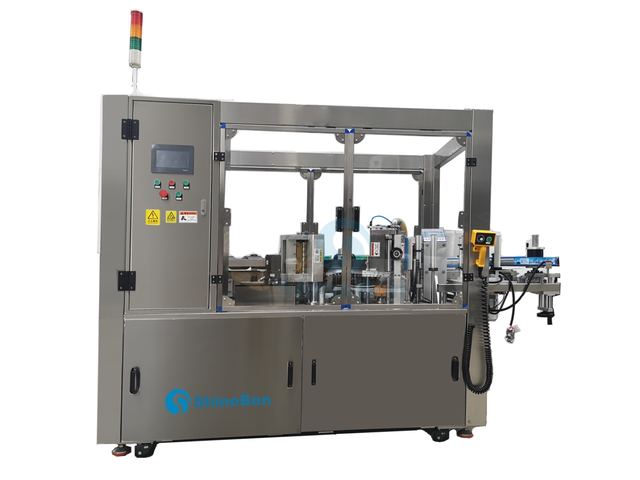

Linear Hot Melt Glue Labeler supplied by Shineben Machinery Co., Ltd. Listed under Packaging. Key published specifications: Labeling Speed 8000 bottles/min (Related to product and label size); Dispensing Accuracy ±1mm; Labeling Accuracy ±1mm; Label Width 15-200mm (Standard width, adjustable for actual product dimensions). Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Labeling Speed	8000 bottles/min (Related to product and label size)
Dispensing Accuracy	±1mm
Labeling Accuracy	±1mm
Label Width	15-200mm (Standard width, adjustable for actual product dimensions)
Maximum Label Length	500mm
Bottle Height	70-320mm (Adjustable for actual product dimensions)
Applicable Inner Diameter of Label Roll	152mm
Maximum Outer Diameter of Label Roll	Φ600mm
Power Supply	Three-phase 380V 50Hz 9KW
Gluing Temperature	120-160°C
Compressed Air	8 (kg/cm²)
Unwinding Station	Single station, constant tension unwinding
Machine dimension(L×W×H)	approx. 2000 × 1400 × 2300mm
Machine Weight	approx. 1500KG
