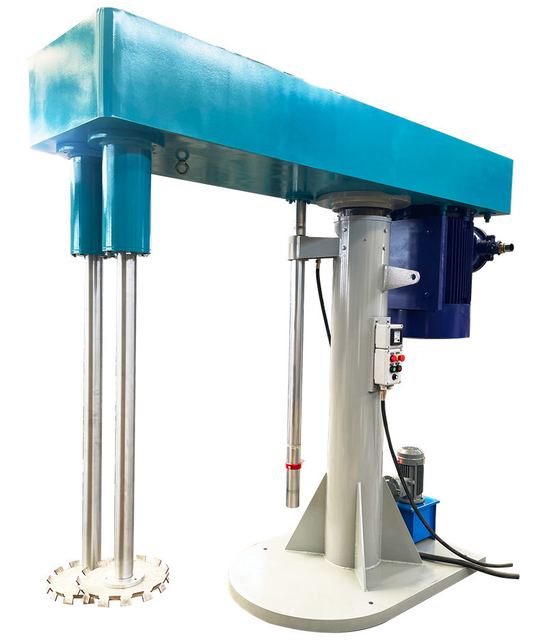

Lifting High Speed Disperser 2.2
Overview
Lifting High Speed Disperser 2.2 supplied by Anqiu Jingchuan Machinery Manufacturing Co., Ltd. Key published specifications: Product Type Lifting High-Speed Disperser; Primary Functions Stirring, Dispersing, Dissolving; Main Motor Power 2.2 - 37 KW (Stepless Speed Regulation); Impeller Diameter 160 - 500 Mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Product Type | Lifting High-Speed Disperser |
|---|---|
| Primary Functions | Stirring, Dispersing, Dissolving |
| Main Motor Power | 2.2 - 37 KW (Stepless Speed Regulation) |
| Impeller Diameter | 160 - 500 Mm |
| Impeller Speed | 80 - 1250 R/min |
| Mixing Shaft Stroke | 1000 / 1100 / 1300 Mm |
| Installation Height | 3013 / 3435 Mm |
| Main technical indicators | Parameters (or "parameters") |
| Main motor (KW) | Stepless speed regulation 2.2-37KW |
| Rack model and compatible main power | Main technical indicators |
| Maximum stroke of the mixing shaft | (mm) |
