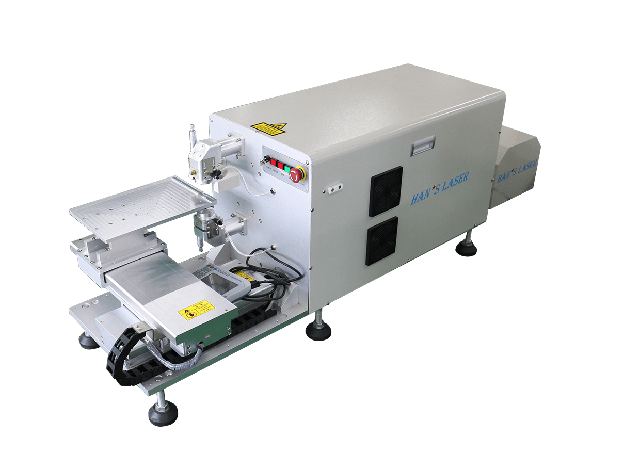

Laser Wire Stripping Machine
Overview
Laser Wire Stripping Machine supplied by Laser Corporation. Listed under Laser Marking Machines. Key published specifications: Laser Type Fiber Laser; Wavelength 1064 nm; Min Beam Diameter < 30 µm; Pulse Width 200ns. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Laser Type | Fiber Laser |
|---|---|
| Wavelength | 1064 nm |
| Min Beam Diameter | < 30 µm |
| Pulse Width | 200ns |
| Pulse Frequency | 20 – 200 kHz |
| Output Power | 20, 30, 50, or 100 Watts |
| Repetition Accuracy | ±0.02mm |
| Cooling System | Air-cooled |
| Operation System | PLC or WINDOWS 7 / 10 |
| Power Consumed | 1kW |
| Warranty Coverage | 1- year |
| Laser Safety Compliance | FDA (CDRH) |
| Running Temperature | 15℃-35℃ / 59°-95°F |
