Overview

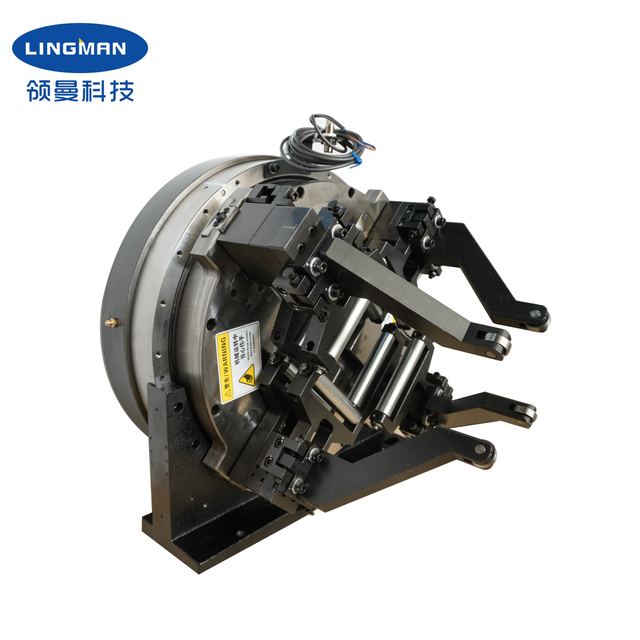

Laser Chuck supplied by Lingman Machinery Technology (Changzhou) Co., Ltd. Listed under Chucks. Key published specifications: Jaw stroke 124mm; Maximunm clamping force 0.6KN; Allowable pressure 0.4-0.9MPa; Maximum rotation diameter 440mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Jaw stroke	124mm
Maximunm clamping force	0.6KN
Allowable pressure	0.4-0.9MPa
Maximum rotation diameter	440mm
Clamping range	6-130mm
Central height	235mm
Rotational inertia	1.42kg.m2
Rotating part weight	71kg
Whole unit weight	134kg
