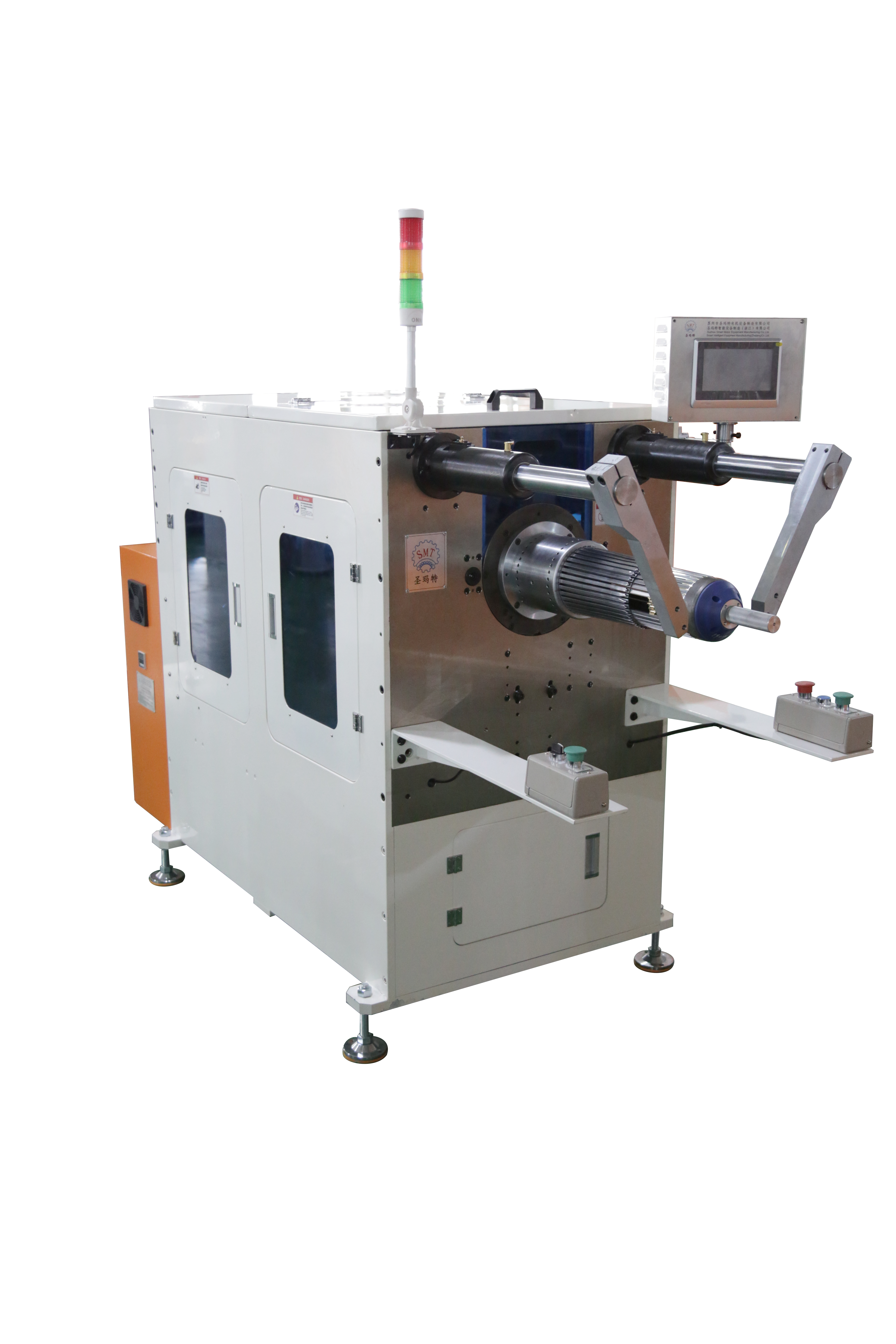

Labor Saving Automatic Motor Winding Machine, Stator OD 110-210mm
Model SMT-QX08
Overview
Labor Saving Automatic Motor Winding Machine, Stator OD 110-210mm supplied by SMT Intelligent Device Manufacturing (Zhejiang) Co., Ltd. Key published specifications: Stator I.D 60-150mm; Stator O.D ≤210mm; Core Length ≤190mm; Tooling stroke ≤90mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Stator I.D | 60-150mm |
|---|---|
| Stator O.D | ≤210mm |
| Core Length | ≤190mm |
| Tooling stroke | ≤90mm |
| Compatible wire | CU/AL |
| Slot number range | 24-48 slots |
| Power supply | 380V/50/60Hz 5Kw |
| Weight | 1050kg |
| Dimension | (L)2370×(W)1160×(H)1710mm |
| Certification | ISO / SGS Audit |
