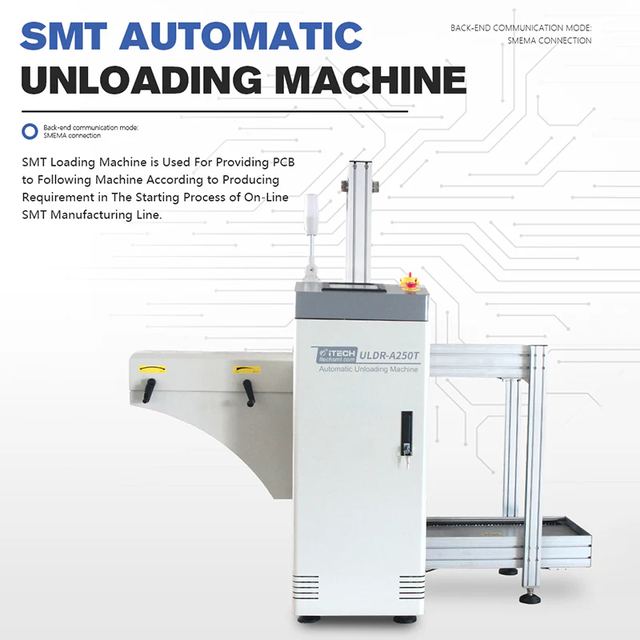

iTECH ULDR-A250T Automatic PCB Unloader
Model ULDR-A250T
Overview
Zhejiang Huaqi Zhengbang Automation Technology Co., Ltd in Wenzhou, Zhejiang lists iTECH ULDR-A250T Automatic PCB Unloader under PCB Unloaders. The listing gives rack size L355*W320*H565mm, conveyor height 900±20mm and conveyor speed 0.16m/s.
Technical specifications
| PCB Size | Max. 350*250mm |
|---|---|
| Rack Size | L355*W320*H565mm |
| Conveyor Height | 900±20mm |
| Conveyor Speed | 0.16m/s |
| Voltage | AC 220V, 50Hz |
| Power | 200W |
| Air Pressure | 0.6Mpa |
| Net Weight | 160kgs |
| Gross Weight | 230kgs |
| Machine Size | L1650×W790×H1200mm |
