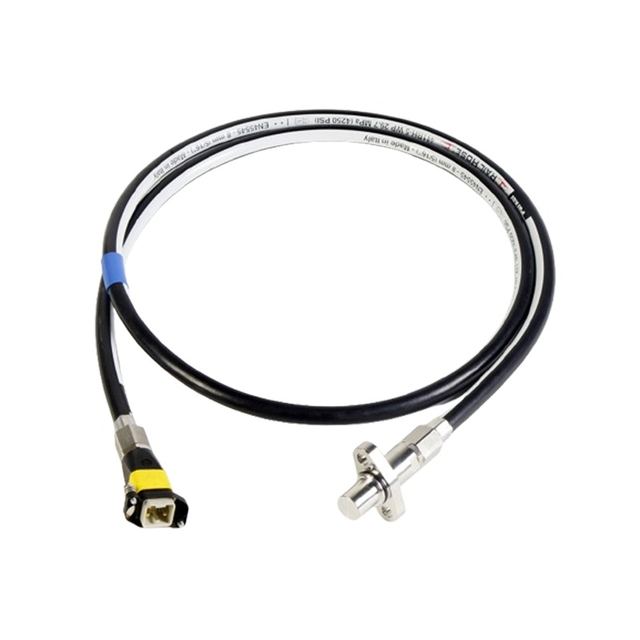

ISO9001 Certified Customizable Hall Speed Sensor
Overview
ISO9001 Certified Customizable Hall Speed Sensor supplied by Chongqing Hengtairail Equipment Co.,Ltd. Listed under Other Railway Products. Key published specifications: Certification ISO9001; Material Metal; Operating Air Gap 1 ± 0.5 Mm; Altitude ≤1500m. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | ISO9001 |
|---|---|
| Material | Metal |
| Operating Air Gap | 1 ± 0.5 Mm |
| Altitude | ≤1500m |
| Relative Humidity | ≤95% (monthly Average Minimum Temperature Of 25℃) |
| Operating Temperature | -40℃ To +120℃ |
| Protection Rating | IP68 (5 Bar, 2 Hours) |
| Operating Voltage | 8V To 30V DC |
| Rated Voltage | DC 15V |
| Speed Measurement Range | 0 To 20 KHz |
| High-Level Output | ≥ Ub - 2.0 V |
| Product Performance | Reference Value |
| Number of Output Channels | customized |
| Low-Level Output | ≤ 1.2 V |
| No-Load Current Consumption | ≤ 40 mA |
