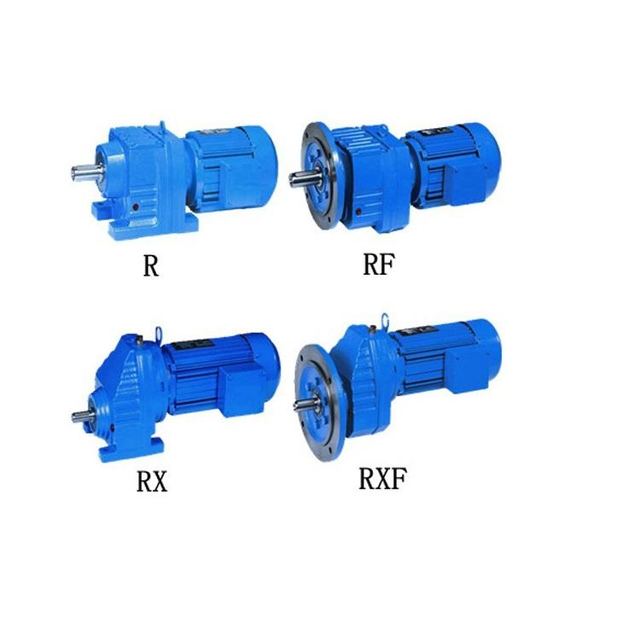

Iron Casting coaxial Inline Helical Bevel Gear Unit Motor 14rpm-280rpm
Overview
Iron Casting coaxial Inline Helical Bevel Gear Unit Motor 14rpm-280rpm supplied by Shanghai Fanbao Industrial Co., Ltd. Key published specifications: Gearing Arrangement Helical; Output Torque 50000N.m; Input Speed 600~1800rpm; Output Speed 14-280rpm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Gearing Arrangement | Helical |
|---|---|
| Output Torque | 50000N.m |
| Input Speed | 600~1800rpm |
| Output Speed | 14-280rpm |
| Weight (KG) | 50kg |
| Mounting Position | Foot-mounted |
| Installation Form | Foot-mounted, flange-mounted, torque arm |
| Efficiency | 94%~98% (depends on the transmission stage) |
| Housing material | HT250 high-strength cast iron |
| Gear material | 20CrMnTi |
| Surface hardness of gears | HRC58°~62° |
| Input / Output shaft material | 40Cr |
| Machining precision of gears | Accurate grinding, 6 Grade |
| Lubricating oil | Mineral oil |
| Brand of bearings | NSK bearing |
| Brand of oil seal | NAK or other brand |
| Noise (MAX) | <70dB |
| Temp. rise (MAX) | <40°C |
| Temp. rise (Oil)(MAX) | <50°C |
| Vibration | ≤20µm |
| Input power | 0.12~90KW |
