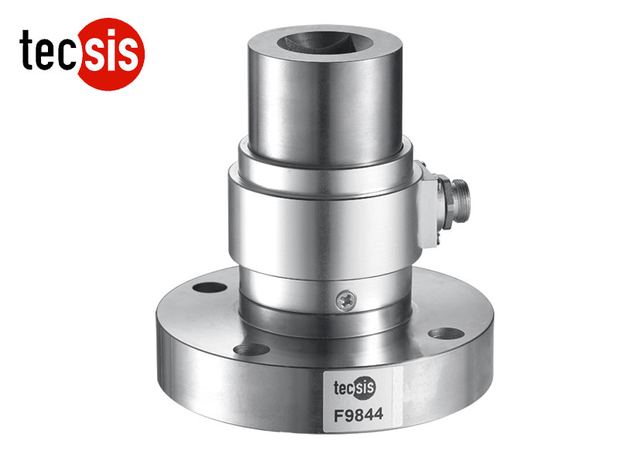

IP65 Force Torque Sensor With High Precision Load Cell Strain Gauge
Model F9844
Overview
IP65 Force Torque Sensor With High Precision Load Cell Strain Gauge supplied by Shenzhen) Sensors Co., Ltd. Key published specifications: Type Column; Material Stainless Steel/Alloy Steel; Capacity 200Nm~800Nm; Oem/Odm Acceptable. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Type | Column |
|---|---|
| Material | Stainless Steel/Alloy Steel |
| Capacity | 200Nm~800Nm |
| Oem/Odm | Acceptable |
| Protection Class | IP65 |
| Rated output | 2.0±10%mV/V |
| Zero balance | ±2% F.S. |
| Non-linearity | 0.25% F.S. |
| Total error | 0.25% F.S. |
| Temp. effect on output | 0.2% F.S. / 10ºC |
| Temp. effect on zero | 0.2% F.S. / 10ºC |
| Recommended excitation | 5~10V |
| Maximum excitation | 15V |
| Compensated temp. range | - 10~40ºC |
| Operation temp. range | - 20~80ºC |
| Safe overload | 120% F.S. |
| Ultimate overload | 150% F.S. |
| Cable size | Ø5×3000mm |
| Standard | carton |
| Model | F9844 |
| Technical parameters | Specifications |
| Input | Red(+) Black(-); |
| Output | Green(+) White(-); |
