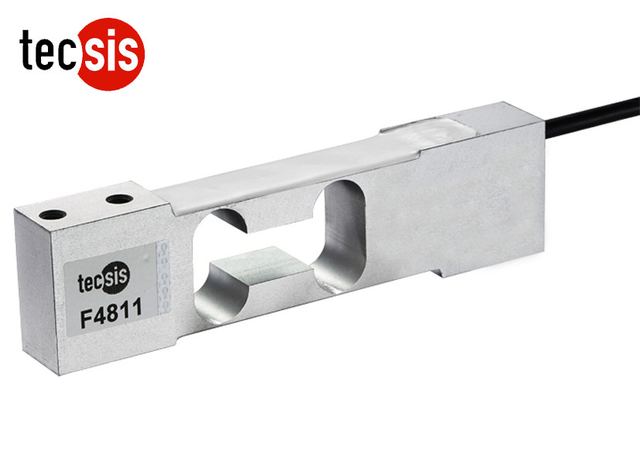

IP65 Aluminum Alloy Load Cell Transducer Micro Load Cells For Scales
Model F4811
Overview
Shenzhen) Sensors Co., Ltd in Shenzhen, Guangdong lists IP65 Aluminum Alloy Load Cell Transducer Micro Load Cells For Scales under Scales. Published figures include type Single Point Load Cell, material Aluminum Alloy and capacity 3kg~100kg.
Technical specifications
| Type | Single Point Load Cell |
|---|---|
| Material | Aluminum Alloy |
| Capacity | 3kg~100kg |
| Oem/Odm | Acceptable |
| Protection Class | IP65 |
| Rated output | 2.0±10%mV/V |
| Zero balance | ±2% F.S. |
| Non-linearity | 0.02% F.S. |
| Hysteresis | 0.02% F.S. |
| Repeatability | 0.02% F.S. |
| Creep (30min) | 0.02% F.S. |
| Temp. effect on output | 0.025% F.S. / 10ºC |
| Temp. effect on zero | 0.025% F.S. / 10ºC |
| Insulation | ≥5000MΩ/ 100VDC |
| Recommended excitation | 5V |
| Maximum excitation | 10V |
| Compensated temp. range | - 10~40ºC |
| Operation temp. range | - 20~60ºC |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Cable size | Ø5×1500 mm |
| Platform size | 250×300mm |
| Standard | carton |
| Model | F4811 |
| Technical parameters | Specifications |
| Input | Red(+) Black(-); |
