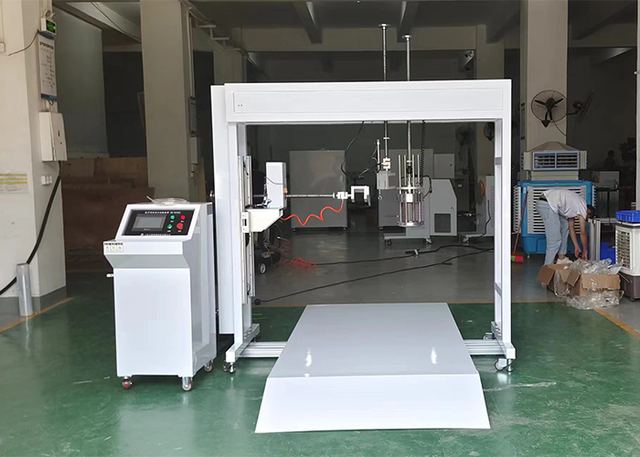

Intelligent Medical Bed Comprehensive Test System for IEC60601-1 for Hospital Bed Safety Test
Overview
Intelligent Medical Bed Comprehensive Test System for IEC60601-1 for Hospital Bed Safety Test supplied by Sinuo Testing Equipment Co. , Limited. Key published specifications: Equipment dimensions About: 1500*2300*2100 (mm) W*D*H; Equipment weight 500kg; Usage environment Power supply: AC220V±10%/50-60Hz, power 3.0KW; Test size range Not larger than WDH=120cm*200cm*130cm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Equipment dimensions | About: 1500*2300*2100 (mm) W*D*H |
|---|---|
| Equipment weight | 500kg |
| Usage environment | Power supply: AC220V±10%/50-60Hz, power 3.0KW |
| Test size range | Not larger than WDH=120cm*200cm*130cm |
| Specimen clamping method | Mechanical clamping |
| Applied force range | 0-4000N, adjustable, force sensor real-time detection and display |
| Force application speed | 0-300mm/min |
| Safety protection | Overload protection, leakage protection |
| Control Method | PLC Control |
| Test Frequency | 0~999999 Times |
| Power supply | AC220V±10%/50-60Hz, power 3.0KW |
| Human body static load test (201.9.8.3.2) | loading force value 0-4000N, constant force time: 0-9999min |
| Tensile rod dynamic load test | 750N, 1000 times |
