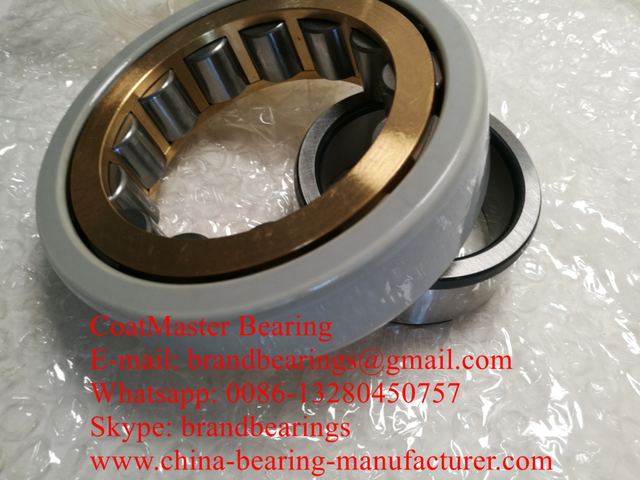

Insulated Cylindrical Roller Bearing NU314 ECM/C4VA301 with coated outer ring
Overview
Insulated Cylindrical Roller Bearing NU314 ECM/C4VA301 with coated outer ring supplied by CoatMaster Bearings Liaocheng ZhuoYi Bearing Co.,Ltd. Key published specifications: Designation NU314 ECM/C4VA301; Electrical Resistance Voltages Up To 3000 V DC; Cage Brass; Cleance C4 or C3 clearance. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Designation | NU314 ECM/C4VA301 |
|---|---|
| Electrical Resistance | Voltages Up To 3000 V DC |
| Cage | Brass |
| Cleance | C4 or C3 clearance |
| Dimension | 70×150×35 mm |
| Weight | 3.2 kg |
| Application | Electric Traction Motors |
| Basic dynamic load rating-C | 336kN |
| Basic static load rating-Co | 228kN |
| Fatigue load limit-Pu | 0 kN |
| Reference speed | 0 r/min |
| Limiting speed | 5600 r/min |
