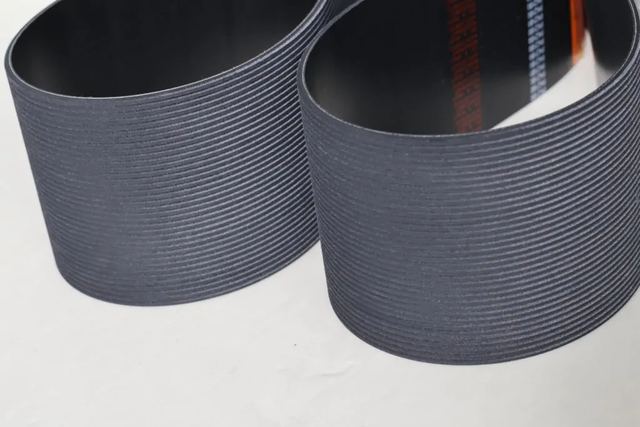

Industrial multi-ribbed belt , Industrial poly-V belt
Overview
Industrial multi-ribbed belt , Industrial poly-V belt supplied by Longyi Rubber Products Factory. Listed under Poly V Belts. Key published specifications: Rib Profiles PH, PJ, PK, PL, PM; Rib Count 3 to 20+ ribs (application-specific); Length Range 300mm to 4000mm+; Materials EPDM, CR, HNBR. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Rib Profiles | PH, PJ, PK, PL, PM |
|---|---|
| Rib Count | 3 to 20+ ribs (application-specific) |
| Length Range | 300mm to 4000mm+ |
| Materials | EPDM, CR, HNBR |
| Cord Reinforcement | Polyester, Aramid |
| Temperature Range | -40°C to +120°C |
| Standards | ISO 9982, DIN 7867 |
| Certifications | IATF 16949 , ISO 9001 |
| Profile | Rib Pitch |
| Rib Height | Typical Applications |
| PH | 1.6mm |
| PJ | 2.34mm |
| PK | 3.56mm |
| PL | 4.70mm |
| PM | 9.40mm |
