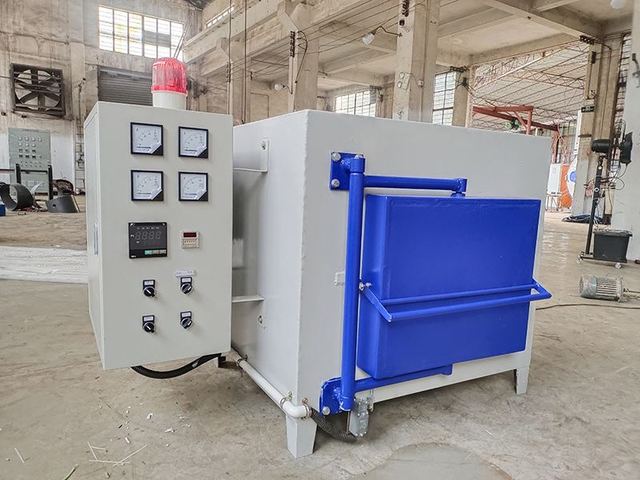

Industrial Furnaces
Overview
Industrial Furnaces supplied by Guangdong Heyu Industrial Furnace Co., Ltd. Listed under Vacuum Furnaces. Key published specifications: Working size (mm) 1300×1150×600mm mm (L×W×H); Power (kw) 150kw; Maximum temperature (ºC) 1200ºC; Rated power supply Three-phase, 380v, 50HZ. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Working size (mm) | 1300×1150×600mm mm (L×W×H) |
|---|---|
| Power (kw) | 150kw |
| Maximum temperature (ºC) | 1200ºC |
| Rated power supply | Three-phase, 380v, 50HZ |
| Heating element connection | Y |
| Temperature control accuracy | ±1ºC |
| Furnace temperature uniformity | ±10ºC |
| Empty furnace loss power | ≤40kw |
| Heating element material | 40 silicon carbon rods 12 |
| Load Capacity (T) | ≤300kg |
