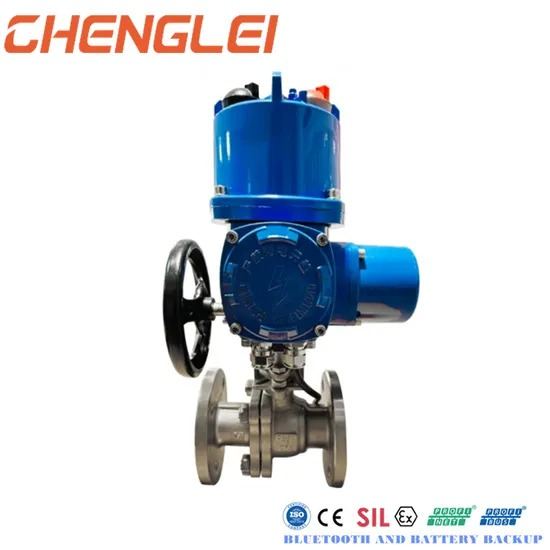

IECEx SIL Certified 30Nm Torque IP65/IP67/IP68 Electric Rotary Actuator for Motorized Valve Control
Overview
IECEx SIL Certified 30Nm Torque IP65/IP67/IP68 Electric Rotary Actuator for Motorized Valve Control, listed by Changzhou Chenglei Valve Technology Co., Ltd in Changzhou, Jiangsu. Published figures include connection form Flange, nominal pressure PN1.0-32.0MPa and structure Floating Ball Valve.
Technical specifications
| Connection Form | Flange |
|---|---|
| Nominal Pressure | PN1.0-32.0MPa |
| Structure | Floating Ball Valve |
| Motor Type | Electric Motor |
| Voltage | 380V/110V/220V/440V/660V AC Or 12V/24V DC |
| Rated Frequency | 50HZ/60HZ |
| Speed | 9r/min,18r/min,24r/min,36r/min/48r/min |
| Control Method | On-off Or Modulating |
| Motor Duty | S2 10min,15min,30min Or S1/S3/S4/S6 24%,40% |
| Protection Grade | IP65/IP67/IP68 |
| Insulation Level | F Level |
| Environmental Temperature | -20~+60 ºC (special Orders -60~+70 ºC) |
| Relative Humidity | ≤ 95% (at+25 ºC) |
| Body Material | Aluminum Alloy/stainless Steel/carbon Steel |
| Variable speed options | 9r/min, 18r/min, 24r/min, 36r/min, 48r/min |
| Control methods | On-off or modulating (4-20mA) |
| Certifications | CCC/UL/CE/IECex/SIL/RoHS/ISO/CE/Gost |
| Temperature range | -20°C to +60°C (special orders -60°C to +70°C) |
| Anti-corrosion coating | Electrostatic powder spraying |
| Operating temperature range | -60°C to +70°C |
