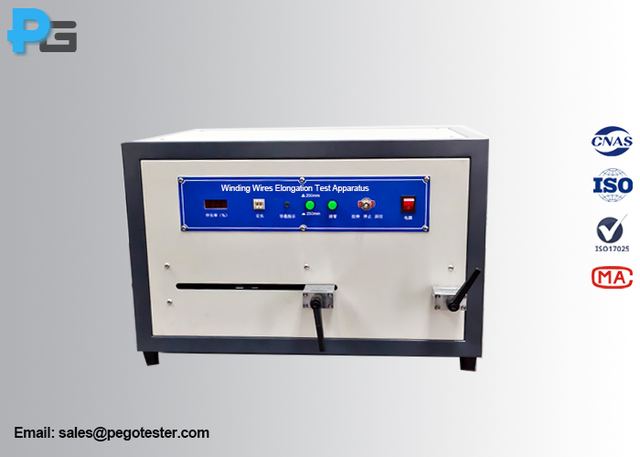

IEC60851-3 Winding Wires Elongation Test Apparatus For Accurate Measurement
Model PG-ETA
Overview
IEC60851-3 Winding Wires Elongation Test Apparatus For Accurate Measurement supplied by Pego Electronics (Yi Chun) Company Limited. Key published specifications: Certification Third-Lab Calibration Certificate; Standard IEC60851-3; Initial Distance Between Clamps 200±1mm And 250±1mm, Adjustable; Movable Clamp Travel Distance ≥82% (164mm). Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | Third-Lab Calibration Certificate |
|---|---|
| Standard | IEC60851-3 |
| Initial Distance Between Clamps | 200±1mm And 250±1mm, Adjustable |
| Movable Clamp Travel Distance | ≥82% (164mm) |
| Sample Elongate Rate | 5±1mm/s |
| Max. Elongation Test Range | 80% (IEC) |
| Power Supply | AC220V±10%, 50Hz |
| Control method | Microcontroller |
| Power consumption | ≤200W or ≤350W |
| Operating environment | Temperature: 0-40 ℃ , relative humidity: ≤85% |
| Dimension and weight | L640*W400*420mm/45KG |
| Jerk speed | ≥3m/s |
| Max. Operating pressure | 0.8Mpa |
| Scraper diameter | (0.23±0.01)mm |
| Scrape speed of scraping device | (400±40)mm/min |
| Test voltage | DC (6.5±0.5)V |
| Flange diameter | Ø180mm and Ø260mm |
| Bending arm length | 300mm and 400mm |
| Rotating speed | 80±5r/min |
| Test length | 500mm |
| Input power | AC 220V±10% 50Hz |
| Wind speed | 100±10r/min |
