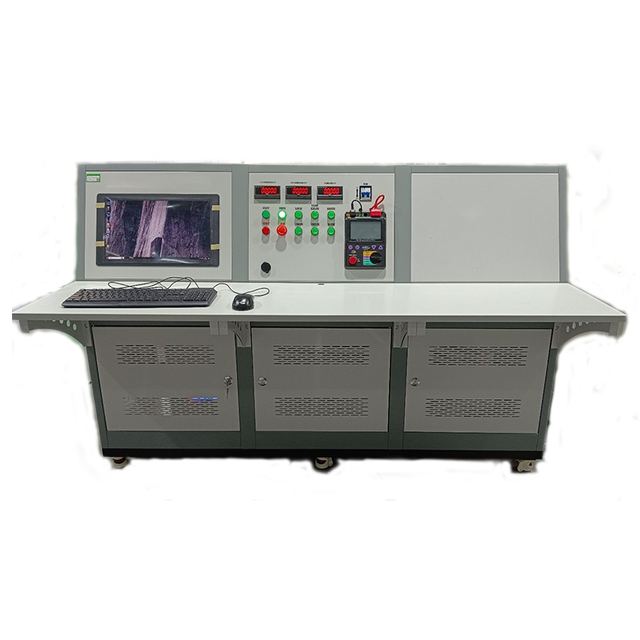

IEC 62196-1 Short-Time Withstand Current Test System For EV Charging Guns & Circuit Breakers
Overview
IEC 62196-1 Short-Time Withstand Current Test System For EV Charging Guns & Circuit Breakers supplied by Sinuo Testing Equipment Co. , Limited. Listed under Circuit Breakers. Key published specifications: Input Power 380V±10%, 50Hz/60Hz, 100kW; Test Voltage 0~1000Vac; Voltage Display Resolution 1V; Voltage Display Accuracy ±1%±2lsb. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Input Power | 380V±10%, 50Hz/60Hz, 100kW |
|---|---|
| Test Voltage | 0~1000Vac |
| Voltage Display Resolution | 1V |
| Voltage Display Accuracy | ±1%±2lsb |
| Test Current Range | 50~10000A; overload ratio: 2.0/2.5/3.0/3.5/4.0/5.0/8.0/10× |
| Open Circuit Voltage | ≥36V |
| Current Display Resolution | 1A |
| Current Display Accuracy | ±1%±3lsb |
| Output Waveform | Sine wave |
| Test Station | 1 station (sample provided by customer) |
| Time Setting Range | 0-200mS |
| Time Detection Range | 0-200.0mS |
| Time Accuracy | ≤±1mS+0.3%RD |
| Control Mode | PLC control |
| Display | 19-inch industrial control all-in-one PC |
| Protection | Over-current, over-time, over-temperature, audible-visual alarm |
| Display Resolution | 1V |
| Power unit | 1800(L)×1000(D)×1800(H)mm |
