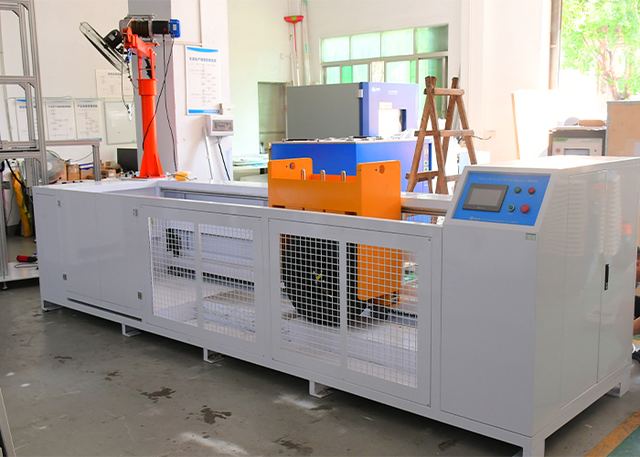

IEC 62196-1 EV Plug Drive-Over Crushing Test Equipment For Vehicle Connector Crushing Test
Overview
IEC 62196-1 EV Plug Drive-Over Crushing Test Equipment For Vehicle Connector Crushing Test supplied by Sinuo Testing Equipment Co. , Limited. Key published specifications: Test Station Single station; Control System PLC intelligent control + 7-inch touchscreen; Operation Mode Automatic / Manual switchable; Drive System Motor + worm gear reducer. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Test Station | Single station |
|---|---|
| Control System | PLC intelligent control + 7-inch touchscreen |
| Operation Mode | Automatic / Manual switchable |
| Drive System | Motor + worm gear reducer |
| Drive Stroke | 0-2.0 m |
| Drive Speed | 8±2 km/h (adjustable) |
| Force Adjustment | Weight loading system (4890-11000 N) |
| Tire Type | P225/75R15 + load-bearing tire |
| Tire Pressure | 220±10 kPa / 218±13 kPa |
| Rolling Method | Linear motor reciprocating motion |
| Base Plate | Simulated concrete floor with fixtures |
| Display | Touchscreen parameter setting & monitoring |
| Braking System | Built-in anti-collision braking mechanism |
| Power Supply | AC 480V ±10%, 60Hz, 15 kW |
| Dimensions | Approx. 4700 × 1300 × 3000 mm |
| Weight | Approx. 2400 kg |
| Control Mode | PLC Control System |
| Drive Over Stroke | 0~2.0m |
| Load Carrying | 5000/11000N |
| Drive Over Speed | (8±2)km/h |
| Rolling speed | 8 ±2 km/h |
