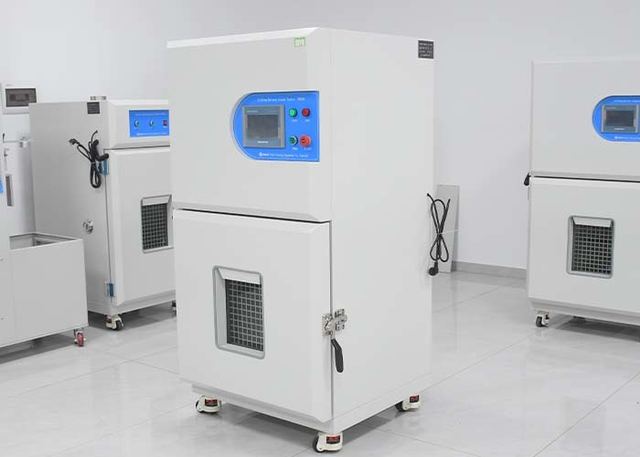

IEC 62133-2 Battery Crush and Nail Penetration Test Chamber for Lithium Battery Safety

IEC 62133-2 Battery Crush and Nail Penetration Test Chamber for Lithium Battery Safety

Overview

Sinuo Testing Equipment Co. , Limited in Guangzhou, Guangdong lists IEC 62133-2 Battery Crush and Nail Penetration Test Chamber for Lithium Battery Safety under Safety Equipment & Systems. The listing gives force range 1KN ~ 50KN Adjustable, crush range 0~300mm and unit conversion Kg / N / Lb.

Technical specifications

Force Range1KN ~ 50KN Adjustable
Crush Range0~300mm
Unit ConversionKg / N / Lb
Speed Range1~15mm/s Adjustable
Speed Accuracy1mm/s
Force Display Accuracy1N
Crush Pause Time0~99h 59min 59s
Penetration Speed1~20mm/s Adjustable
Stroke0~300mm
Steel NeedlesΦ3×100mm ×3 pcs / Φ5×100mm ×3 pcs
Voltage Resolution1mv
Input VoltageAC 220V, 50Hz
Power1.5KW
Chamber StructureVertical Pressure Structure
Maximum Test SpaceW500 × D520 × H450 mm
External SizeApprox. 800W × 800D × 1700H mm
Chamber WeightApprox. 350kg
Control MethodPLC + Touch Screen
Data CommunicationUSB Export
Emergency StopIncluded
Inner MaterialSUS304 Stainless Steel
Outer MaterialPowder Coated Cold Steel Plate
Observation Window300×300×10mm Double-Layer Explosion-Proof Glass
Exhaust Port100mm
Mobility4 Universal Wheels
Safety Protection IncludesDouble-layer reinforced explosion-proof chamber door
