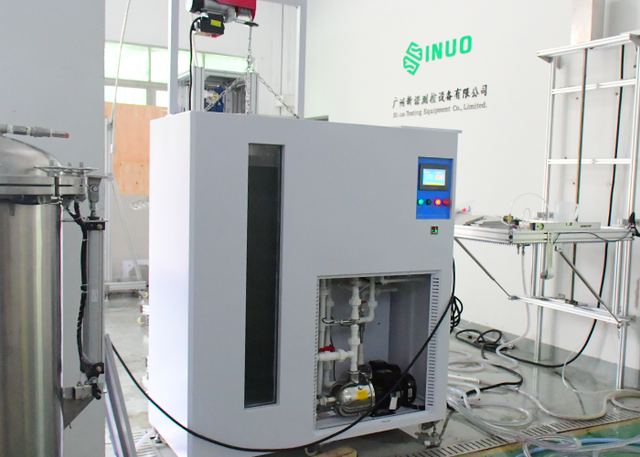

IEC 60529 Full‑featured IPX1‑IPX8 Integrated Waterproof Testing System Waterproof Test Equipment
Overview
IEC 60529 Full‑featured IPX1‑IPX8 Integrated Waterproof Testing System Waterproof Test Equipment supplied by Sinuo Testing Equipment Co. , Limited. Key published specifications: IPX1~6 Accessory φ600mm, tiltable 0°/15°; Rain area 1000mmX1000mm; Tank material Stainless steel; Dripping aperture ￠0.4mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| IPX1~6 Accessory | φ600mm, tiltable 0°/15° |
|---|---|
| Rain area | 1000mmX1000mm |
| Tank material | Stainless steel |
| Dripping aperture | ￠0.4mm |
| Hole distance | 20mm |
| Water dripping height | 200mm (automatically control by the test equipment) |
| Body material | Industrial aluminum alloy |
| Dimensions (LxDxH) | 1100X1200X2800mm |
| Machine structure | Wall Mount |
| Inner chamber size | 650mm×600mm×1500mm |
| Water tank volume | Approx. 500L |
| Temperature control | Room temp ~ 65℃ (±3℃, PID) |
| Lifting distance | 0~1200mm |
| Load capacity | 100kg |
| Controller | Mitsubishi PLC + 7-inch touch screen |
| Power | Three-phase AC 380V, 50Hz |
| Dimensions | 1400×750×1600mm |
| Tank size | φ600mm×1000mm |
| Pressure range | 0~5bar (customizable) |
| Pressure gauge | 0~6bar, 0.25 class |
| Test time | 0~99min |
| Max pressure | 5bar |
| Connection | 3/4 high-pressure steel hose |
| Diameter | φ600mm |
| Speed | 1rpm |
| Rotation | 90° / continuous |
| Material | Industrial aluminum alloy |
| Rainfall Flow | 1mm/min, 3mm/min |
