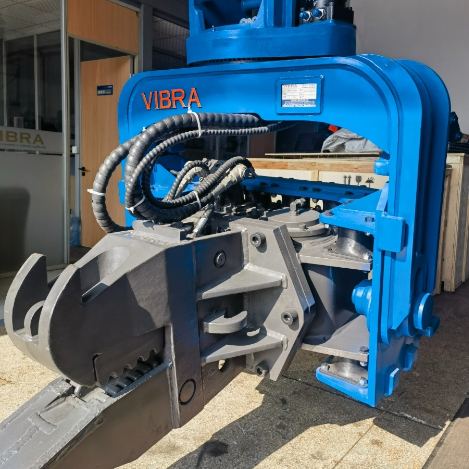

Hydraulic Pile Driver
Model FV-280R
Overview
Hydraulic Pile Driver, listed under Hydraulic Pile Drivers by Shanghai Yekun Construction Machinery Co., Ltd in Shanghai. Published figures include certification ISO 9001:2015, vibration frequency 2800 Rpm and eccentric moment 4.3 Kgm.
Technical specifications
| Certification | ISO 9001:2015 |
|---|---|
| Vibration Frequency | 2800 Rpm |
| Eccentric Moment | 4.3 Kgm |
| Operation Pressure | 32 Mpa |
| Work Flow | 176 L/min |
| Centrifugal Force | 335 Kn |
| Max.Pile Length | 12m |
| Arm Weight | 500 Kg |
| Hammer Weight | 1900 Kg |
| Working Pressure | 32 MPa |
| Working Flow | 176.4 L/min |
| Suitable Excavator | 23 – 27 tons |
