Overview

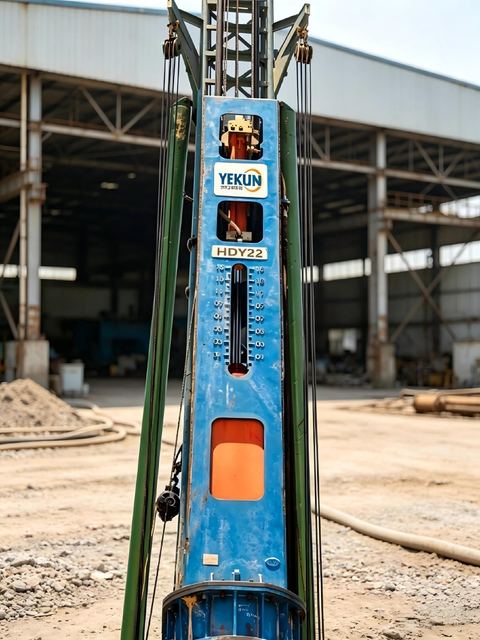

Hydraulic Impact Hammer supplied by Shanghai Yekun Construction Machinery Co., Ltd. Listed under Pile Drivers. Key published specifications: Certification ISO 9001:2015; Maximum Strike Energy 300 kN·m; Maximum Stroke of Hammer Core 1500 mm; Impact Frequency (Adjustable) 30 – 80 bpm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Certification	ISO 9001:2015
Maximum Strike Energy	300 kN·m
Maximum Stroke of Hammer Core	1500 mm
Impact Frequency (Adjustable)	30 – 80 bpm
Striking Body Weight	18,000 kg
Total Weight (Hydraulic Hammer)	27,100 kg
Total Height A	7,670 mm
Total Height B	8,830 mm
Front-to-Rear Width	1,490 mm
Left-to-Right Width	1,260 mm
Landing Gear Weight	650 kg
