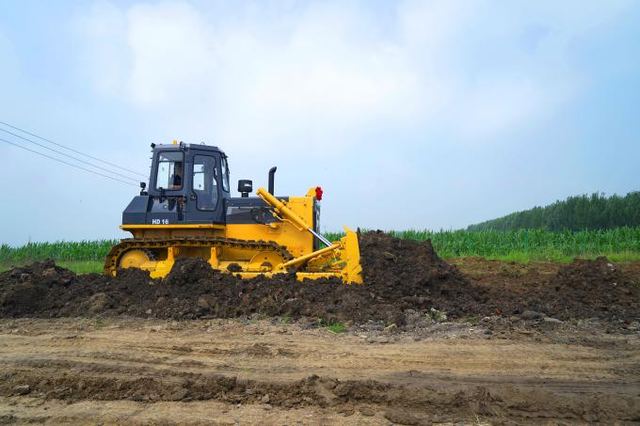

HW16D Logging Dozer Efficient Workflow And Robust Ripper Capability
Model 16D
Overview
HW16D Logging Dozer Efficient Workflow And Robust Ripper Capability supplied by Jining Hengwang construction machinery Co., LTD. Listed under Bulldozers. Key published specifications: Working Weight 17000KG; Minimum Turning Radius 4466mm; Ground Length 2430mm; Ground Voltage 0.067kpa. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Working Weight | 17000KG |
|---|---|
| Minimum Turning Radius | 4466mm |
| Ground Length | 2430mm |
| Ground Voltage | 0.067kpa |
| Engine | WD10G178E25 |
| Engine Power | 131KW |
| Dimensions | 5140*3388*3032 (mm) |
| Forward Speed | 0~9.63 (km/h) |
| Reverse Speed | 0~12.53(km/h) |
| Ground Clearance | 400mm |
| Track Center Distance | 1880mm |
| Track Shoe Width | 510/560mm |
