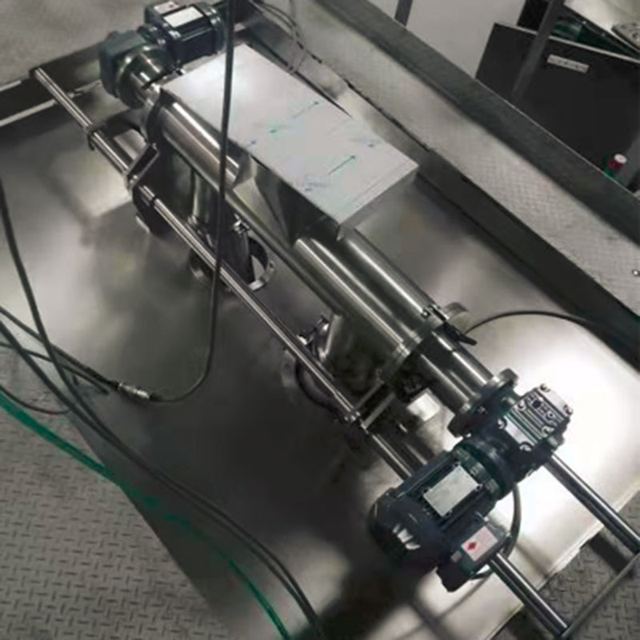

Horizontal Screw Conveyor
Model SP-H1-5K
Overview
Horizontal Screw Conveyor supplied by Simple Shipu Group Co., Ltd. Key published specifications: Transfer speed 5 m 3 /h; Total Powder 0.75KW; Total Weight 80kg; Pipe thickness 2.0mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Transfer speed | 5 m 3 /h |
|---|---|
| Total Powder | 0.75KW |
| Total Weight | 80kg |
| Pipe thickness | 2.0mm |
| Spiral outer diameter | Φ126mm |
| Pitch | 100mm |
| Blade thickness | 2.5mm |
| Shaft diameter | Φ42mm |
| Shaft thickness | 3mm |
| Length | 600mm (center of inlet and outlet) |
