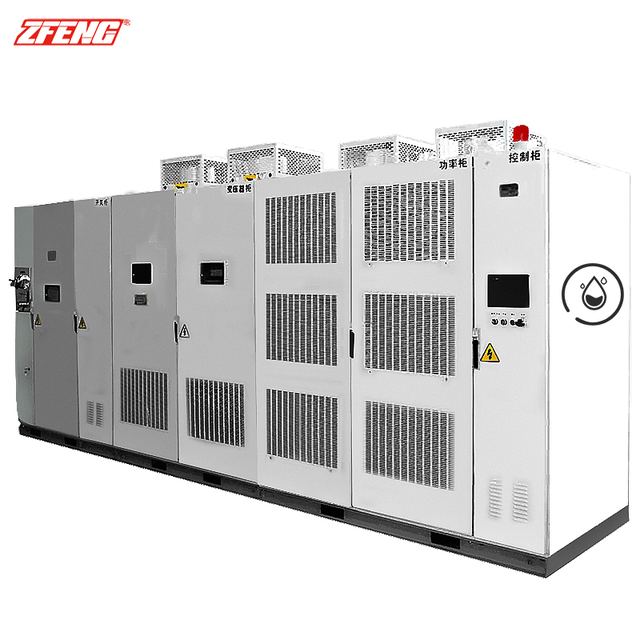

High Voltage Variable Frequency Drive (HV VFD)
Overview
High Voltage Variable Frequency Drive (HV VFD) supplied by Guangdong Zhufeng Electric Co., Ltd. Key published specifications: Input Voltage 3.3kV / 6kV / 10kV / 11kV; Power Range 200kW – 10000kW; Output Frequency 0 – 120Hz; Control Mode V/F Control, Sensorless Vector Control. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Input Voltage | 3.3kV / 6kV / 10kV / 11kV |
|---|---|
| Power Range | 200kW – 10000kW |
| Output Frequency | 0 – 120Hz |
| Control Mode | V/F Control, Sensorless Vector Control |
| Power Factor | Up to 0.95 |
| Protection Degree | IP30 / IP40 / IP54 (Optional) |
| Cooling Method | Air Cooling |
| Communication | Modbus RTU, Profibus, Ethernet (Optional) |
| Operating Temperature | -10°C to +40°C |
| Nominal Voltage | ＞3KV |
| Communicationinterfaces | RS485, Modbus, Ethernet |
