Overview

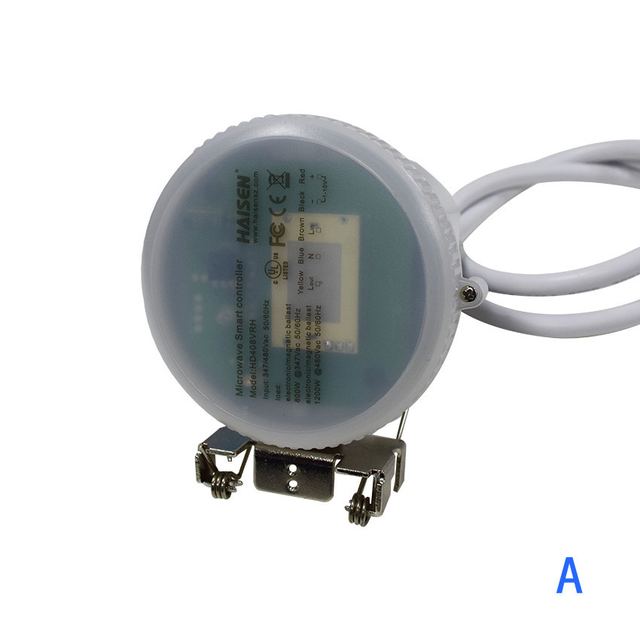

High Voltage 347V 480V Remote Control Motion Sensor With Dimmer supplied by Shenzhen HAISEN Technology Co.,Ltd. Listed under Proximity Sensors. Key published specifications: Certification UL FCC RoHS; Operating voltage 347-480VAC,50Hz/60Hz; Stand-by power ≤1w; Control method on/off /1-10v dimming/ remote control(HD02R,HD03R,HD05R). Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Certification	UL FCC RoHS
Operating voltage	347-480VAC,50Hz/60Hz
Stand-by power	≤1w
Control method	on/off /1-10v dimming/ remote control(HD02R,HD03R,HD05R)
Microwave frequency	5.8GHz±75MHz
Microwave power	<0.3mW
Hold time	5s/30s/1min/3min/5min/10min/20min/30min
Daylight threshold	2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/Disable
Stand-by period	0s/10s/30s/1min/5min/10min/30min/+∞
Control line	Black L,White N,Red L',Gray 1-10v-,Purple 1-10v+
Mounting height	Max.15m ( 49.21ft )
Deteation range	MaxØ14m/45.93ft
Motion detection	0.5–1,5m/s
IP rating	IP 65
Safty standard	EN61347-1 EN61347-2-13 EN60598-1
Input Voltage	347-480VAC,50Hz/60Hz
Certificate	UL FCC RoHS
Operating Temperature	-20°C~+55°C
