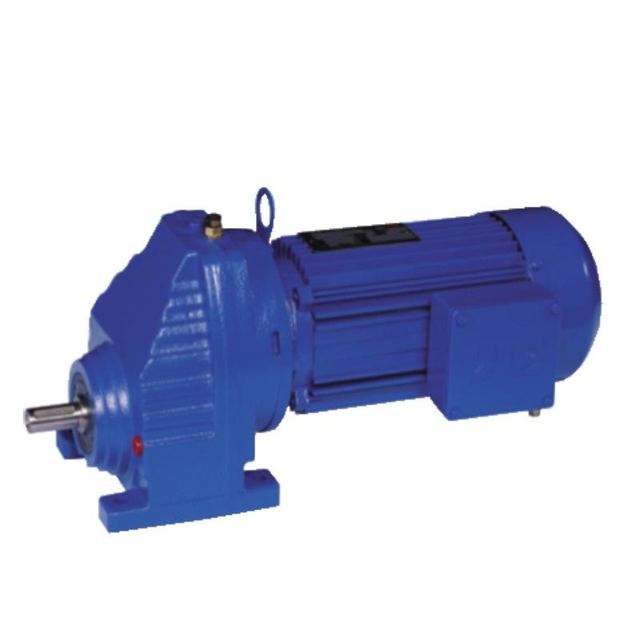

High Torque Single Stage Helical Gear Reducer Motor Flange Mounted RXF Series
Overview
High Torque Single Stage Helical Gear Reducer Motor Flange Mounted RXF Series supplied by Shanghai Fanbao Industrial Co., Ltd. Key published specifications: Gearing Arrangement Helical; Output Torque 50000N.m; Input Speed 600~1800rpm; Output Speed 14-280rpm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Gearing Arrangement | Helical |
|---|---|
| Output Torque | 50000N.m |
| Input Speed | 600~1800rpm |
| Output Speed | 14-280rpm |
| Weight (KG) | 50kg |
| Mounting Position | Foot-mounted |
| Size | R17~R167 |
| Gear Material | Low carbon high alloy steel |
| Heat Treatment | Carburising/quenching/gear grinding |
| Easy Installation | Simple and straightforward installation procedures |
