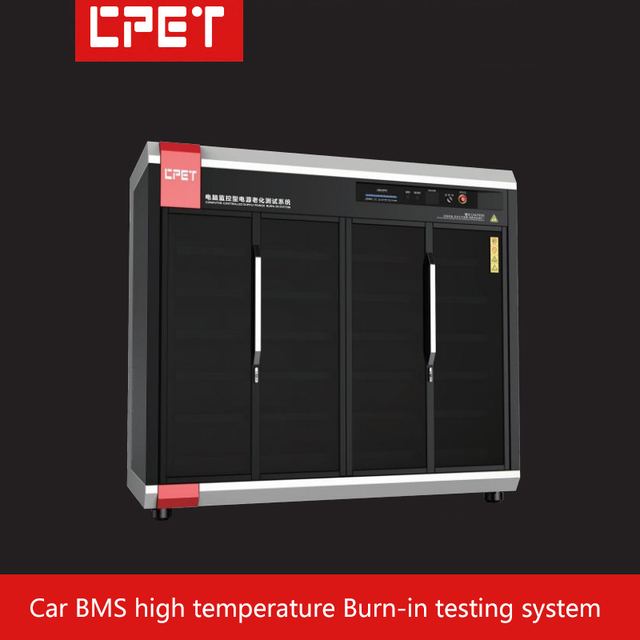

High Temperature Burn-in Test Of BMS Board Of New Energy Four-wheel Electric Vehicles Motor Controller
Model CP-B3001
Overview
High Temperature Burn-in Test Of BMS Board Of New Energy Four-wheel Electric Vehicles Motor Controller, listed under Motor Controllers by Shenzhen CPET Electronics Co., Ltd in Shenzhen, Guangdong. Burn-in cabinet size(mm) L1600*W1100*H1600, rated working voltage 380Vac and rated insulation voltage 690Vac are among the specifications published.
Technical specifications
| Burn-in Cabinet Size(mm) | L1600*W1100*H1600 |
|---|---|
| Rated working voltage | 380Vac |
| Rated insulation voltage | 690Vac |
| Rated frequency | 50Hz |
| Rated working current | 32A |
| UUT input specifications | 12VDC/5Amax*36passageway |
| UUT output specifications | Static burn-in without load |
| Number of burn-in stations | 36 (6 layers * 6, hierarchical control) |
| Master switch | Route 132A |
| Branch switch | 6 way 10A/30mA/3Por1P |
| Installation method | Floor installation |
| Docking method | Cable flexible connection |
| Cabinet door | Front and rear double doors |
| Panel instructionsv | Status indicator of each slot |
| Certification | CE,ROHS |
| Noise | Product Description |
