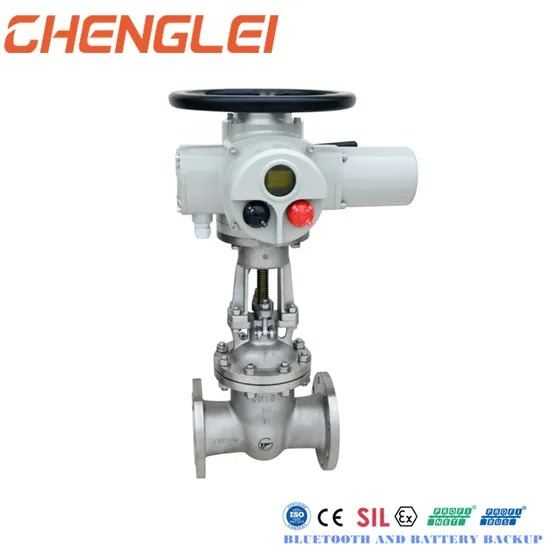

High Temperature +60 ºC Electric Valve Actuator with Handwheel and IP65/IP67/IP68 Protection
Overview
High Temperature +60 ºC Electric Valve Actuator with Handwheel and IP65/IP67/IP68 Protection supplied by Changzhou Chenglei Valve Technology Co., Ltd. Listed under Valve Actuators. Key published specifications: Rated Frequency 50Hz/60Hz; Speed Options 9r/min, 18r/min, 24r/min, 36r/min, 48r/min; Control Method On-off or modulating (4-20mA); Protection Grade IP65/IP67/IP68 options. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Rated Frequency | 50Hz/60Hz |
|---|---|
| Speed Options | 9r/min, 18r/min, 24r/min, 36r/min, 48r/min |
| Control Method | On-off or modulating (4-20mA) |
| Protection Grade | IP65/IP67/IP68 options |
| Insulation Level | F level |
| Environmental Temperature | -20°C to +60°C (special orders -60°C to +70°C) |
| Relative Humidity | ≤ 95% (at +25°C) |
| Power Source | Electric Power |
| Temperature Range | -20~+60 ºC |
| Connection Type | Flange |
| Material | Aluminum Alloy |
| Motor Type | Electric Motor |
| Voltage Options | 380V/110V/220V/440V/660V AC Or 12V/24V DC |
| Motor Duty | S2 10min,15min,30min Or S1/S3/S4/S6 24%,40% |
| Multiple voltage options | 380V/110V/220V/440V/660V AC or 12V/24V DC |
