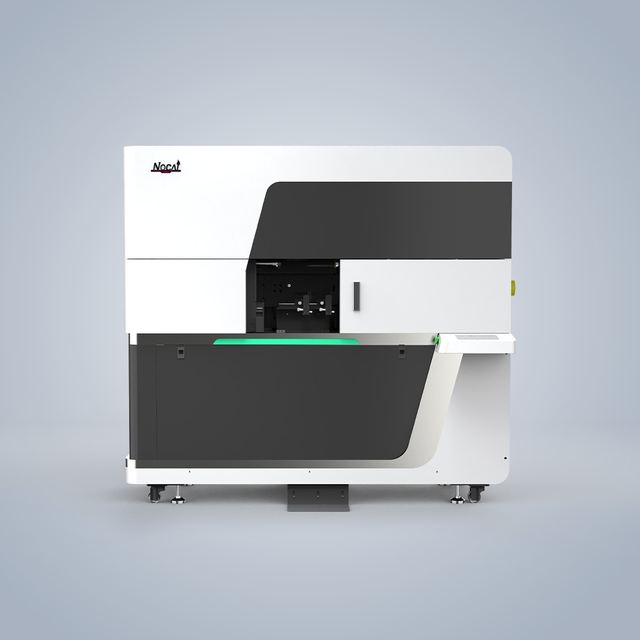

High-speed UV printer for thermos cups NC-CylinderElf-IV-A

High-speed UV printer for thermos cups NC-CylinderElf-IV-A

Overview

High-speed UV printer for thermos cups NC-CylinderElf-IV-A supplied by Guangzhou Nocai Digital Products Co., Ltd. Listed under Digital Printing Machines. Key published specifications: Machine Model NC-CylinderEIf-IV-A; Printhead Configuration RICOH GEN6*4; Printing Length 80-280mm; Printing Diameter Range Φ45-160mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Machine ModelNC-CylinderEIf-IV-A
Printhead ConfigurationRICOH GEN6*4
Printing Length80-280mm
Printing Diameter RangeΦ45-160mm
Resolution720*900dpi / 720*1200dpi / 960*900dpi / 960*1200dpi
Flatbed Printing Speed30-180 seconds/piece
Rated Power1500W
Power Supply VoltageAC220V，50HZ/60HZ
Machine Size(L/W/H)1631mm*915mm*1465mm
Net Weight310KG
Ink TypeEnvironmentally friendly UV curing ink
Printer TypeDigital inkjet printer
TypeHard UV Curable Ink
Capacity1000 ml
Compatible ModelAll Nocai UV Printers
