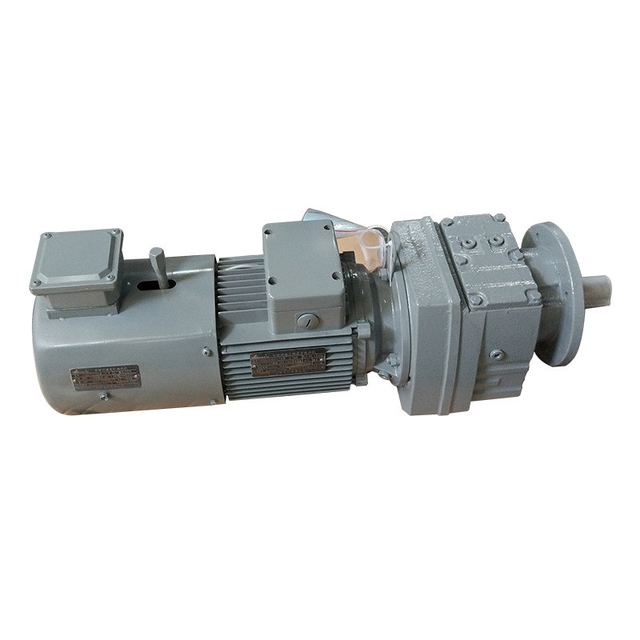

High Speed Helical Bevel Gearmotor Gearbox Reducer 600rpm-1500rpm
Overview
High Speed Helical Bevel Gearmotor Gearbox Reducer 600rpm-1500rpm supplied by Shanghai Fanbao Industrial Co., Ltd. Key published specifications: Gearing Arrangement Helical; Output Torque 3.2-18000N.m; Input Speed 600~1500rpm; Output Speed 14-280rpm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Gearing Arrangement | Helical |
|---|---|
| Output Torque | 3.2-18000N.m |
| Input Speed | 600~1500rpm |
| Output Speed | 14-280rpm |
| Weight | 50kg |
| Mounting Position | Foot-mounted |
| Installation Form | Foot-mounted, Flange-mounted, Torque arm |
| Gear Material | 20CrMnTi alloy steel |
| Surface Hardness of Gears | HRC58°~62 |
| Gear Core Hardness | HRC33~40 |
| Input/Output Shaft Material | 42CrMo alloy steel |
| Input/Output Shaft Hardness | HRC25~30 |
| Machining Precision of Gears | Accurate grinding, 6~5 Grade |
| Lubricating Oil | GB L-CKC220-460, Shell Omala220-460 |
| Efficiency | 94%~96% (depends on transmission stage) |
| Noise (MAX) | 60~68dB |
| Temperature Rise (MAX) | 40°C |
| Oil Temperature Rise (MAX) | 50°C |
| Backlash | ≤20 Arcmin |
| Brand of Oil Seal | NAK-Taiwan or other brands requested |
| Weight (KG) | 50kg |
