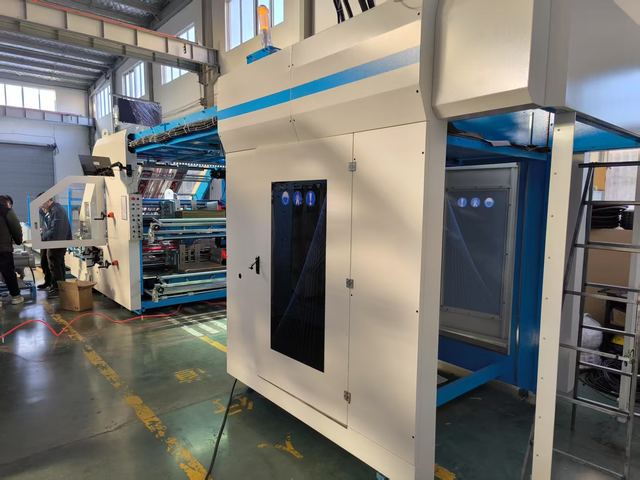

High Speed 5ply Flute Laminating Machine with Servo Control
Model SFC-1500/1700/1900
Overview
High Speed 5ply Flute Laminating Machine with Servo Control supplied by Anhui Innovo Bochen Machinery Manufacturing Co., Ltd. Listed under Servo Motor. Key published specifications: Driving Type Electrical Driving; Down Paper Thickness Thickness 400gsm-10mm Cardboard And FLUTE; Minimum Sheet Size 1500: 40*45cm 1700: 45*45cm; Lamination Type Cardboard+corrugator+cardboard. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Driving Type | Electrical Driving |
|---|---|
| Down Paper Thickness Thickness | 400gsm-10mm Cardboard And FLUTE |
| Minimum Sheet Size | 1500: 40*45cm 1700: 45*45cm |
| Lamination Type | Cardboard+corrugator+cardboard |
| Max Material Size | 1500*1500mm And 1700*1700mm |
| Glue Roller Size | Anilox Roller 160mm Diameter |
| Automatic Flute Laminator Machine | 1500x1500mm Corrugated Board Machine |
| Max sheet size | 1900*1900mm |
| Min sheet size | 500*500mm |
| Fitting Precision | 1mm or less |
| Model | ZSD1900 |
| Bottom paper thickness | 300gsm-10mm |
| Top paper thickness | 150-800gsm |
| Top sheet thickness | 150-800g |
| Bottom sheet thickness | ≤10mm corrugated board ≥300gsm cardboard |
| min paper | 360*400mm |
| Face sheet thickness | 120-800gram printed paper or cardboard |
| Down sheet thickness | 300gram to 1cm B E F flute |
| Max lamination size | 150*150mm and 170*170cm |
