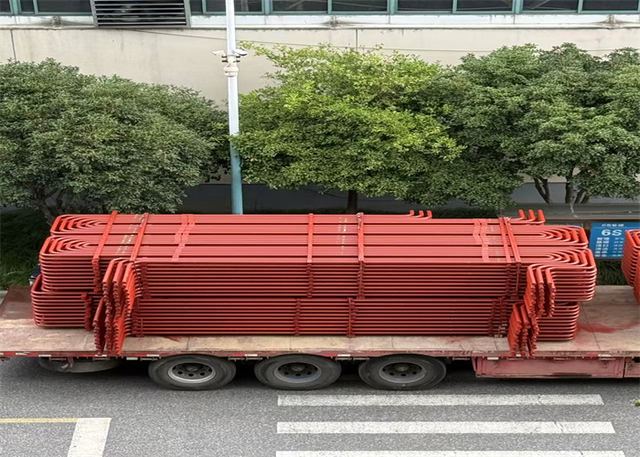

High Pressure Corrosion Resistant Industrial Superheater Coil with Customizable Length for Boilers
Overview
High Pressure Corrosion Resistant Industrial Superheater Coil with Customizable Length for Boilers, listed under High Pressure Boilers by Boiler Co. Ltd. Zhangjiagang HuaDong Boiler Co., Ltd in Zhangjiagang, Jiangsu. The listing gives type Gas Fired Superheater Coil, application Boiler Superheater Coil and material High-grade Alloy Steel.
Technical specifications
| Type | Gas Fired Superheater Coil |
|---|---|
| Application | Boiler Superheater Coil |
| Material | High-grade Alloy Steel |
| Operating Pressure | Up to 25 MPa |
| Operating Temperature | Up to 600°C |
| Tube Diameter | 20 mm - 60 mm |
| Tube Thickness | 3 mm - 6 mm |
| Coil Length | Customizable up to 10 meters |
| Connection Type | Flanged or Welded |
| Heat Transfer Efficiency | Above 85% |
| Standard Compliance | ASME, ISO 9001 |
| Certification | ISO9001,ASME,Grade A,SGS,EN,TUV |
| Technical Parameters | Product Name |
