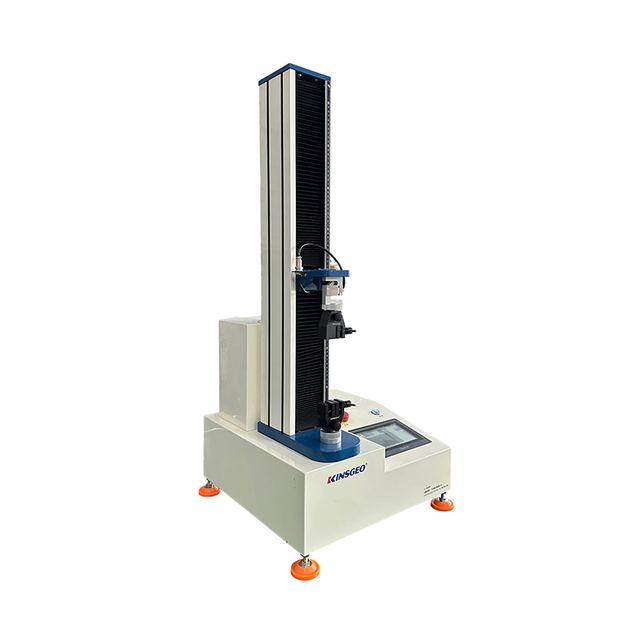

High Precision Universal Testing Machine 0.5 Grade Sensor
Model KJ-1065C
Overview
High Precision Universal Testing Machine 0.5 Grade Sensor supplied by GUANGDONG KEJIAN INSTRUMENT CO.,LTD. Key published specifications: Certification CE/ISO; Power AC220V 50Hz; Weight 80kg; Power Supply 220V 50Hz. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | CE/ISO |
|---|---|
| Power | AC220V 50Hz |
| Weight | 80kg |
| Power Supply | 220V 50Hz |
| Application | Tensile Testing |
| Standard | BS.EN.ASTM |
| Capacity | 10.20.50.100 Optional |
| Stroke | 650mm(excluding Clamp) |
| Tester Resolution | Constant The Resolution |
| Design Standards | ASTM D903, GB/T2790/2791/2792, CNS11888 |
| Model | KJ-1065C |
| Speed Range | 50-400mm/min adjustable, constant speed, 300mm/min |
| Test Space | 120mm MAX |
| Display | Windows operation |
| Dimensions (W×D×H) | (W×D×H) 58×58×125cm |
| Optional Accessories | Stretcher, air clamp |
| Control | PC |
| Test Speed | 50～400mm/min adjustable,constant speed 300mm/min |
| Accuracy | ±0.5% or better |
