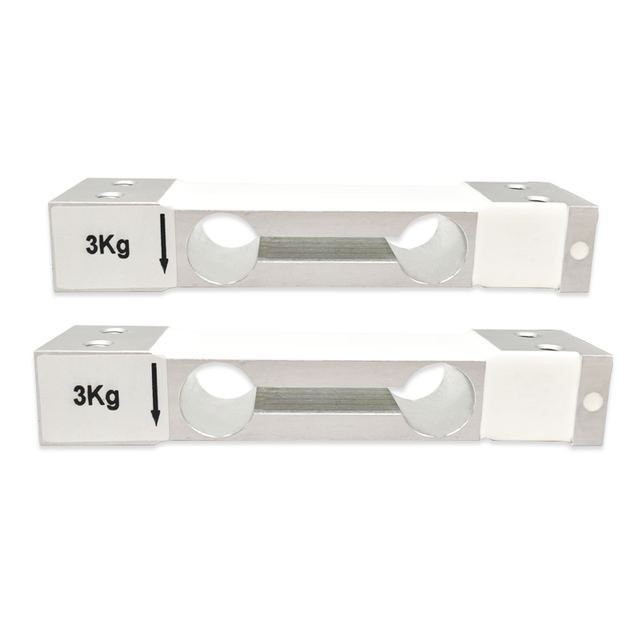

High Precision Aluminum Alloy Single Point Load Cell 3kg To 30kg For Parallel Use(WL-114)
Model WL-114
Overview
High Precision Aluminum Alloy Single Point Load Cell 3kg To 30kg For Parallel Use(WL-114) supplied by OK Brans Measuring And Controlling Technology Co., Ltd. Key published specifications: Capacity 3kg/6kg/10kg/20kg/30kg; Combined Error 0.01%F.S.; Rated Output 2.0±10%mV/V; Zero Balance ±2%mV/V. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Capacity | 3kg/6kg/10kg/20kg/30kg |
|---|---|
| Combined Error | 0.01%F.S. |
| Rated Output | 2.0±10%mV/V |
| Zero Balance | ±2%mV/V |
| Safe Overload | 150%F.S. |
| Material | Aluminum Alloy |
| Protection Class | IP65 (Customizable) |
| Cable Size | Ф4x2000mm (Customizable) |
| Operation Temp | -20~60°C |
| Non-linearity | 0.015%F.S. |
| Repeatability | 0.01%F.S. |
| Insulation Resistance | ≧5000MΩ/100VDC |
| Recommended Excitation | 5~15VDC |
| Certification | CNAS |
