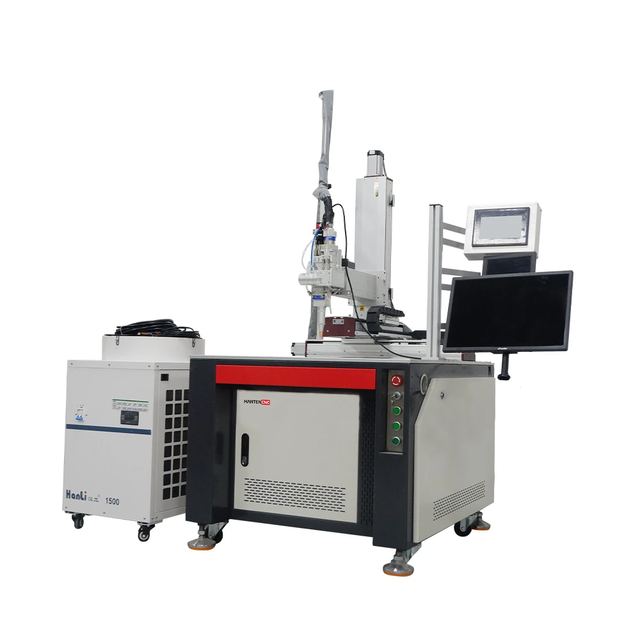

High-precision 1000W Platform Automatic Laser Welding Machine
Model HTW1000/1500/2000/3000
Overview
High-precision 1000W Platform Automatic Laser Welding Machine supplied by HANTENCNC. Key published specifications: Laser source MAX/Raycus/JPT; Laser power 1000W//1500/2000/3000; Fiber cable length 10M/12M/15M/Maximum20M; Wavelength 1080nm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Laser source | MAX/Raycus/JPT |
|---|---|
| Laser power | 1000W//1500/2000/3000 |
| Fiber cable length | 10M/12M/15M/Maximum20M |
| Wavelength | 1080nm |
| Spot diameter | 0.5-3mm |
| Welding focal length | F=150mm |
| Maximum oscillation speed | 20000mm/s |
| Laser divergence angle | ≤5rad |
| Total power | 6KW/6KW/7KW/8KW |
| Running accuracy | 0.2mm |
| Coaxial accuracy | 0.02mm |
| Working Voltage | 1000W and 1500W: 220V 2000W and 3000W: 380V |
