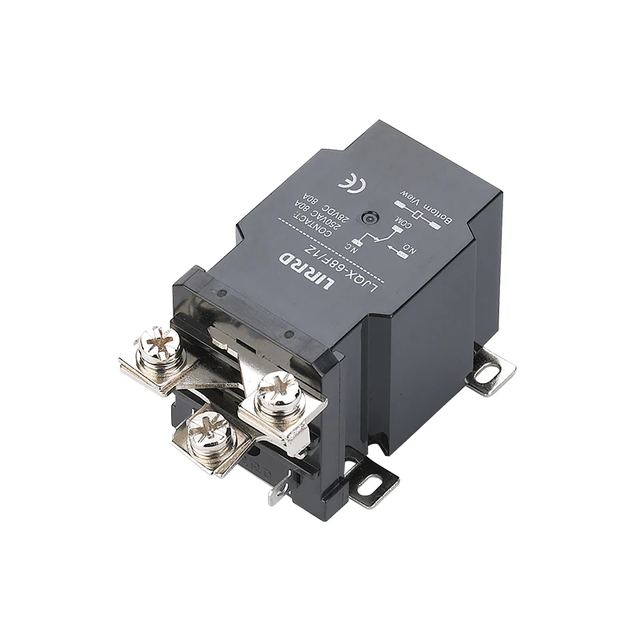

High Power Relay LJQX-68F/1Z

High Power Relay LJQX-68F/1Z

Overview

High Power Relay LJQX-68F/1Z, listed by Zhejiang Lierd Relays Enterprise Co., Ltd in Wenzhou, Zhejiang. The listing gives contact form 1Z 1H 1D, contact material Silver Alloy and ac(v) 6~380V.

Technical specifications

Contact Form1Z 1H 1D
Contact MaterialSilver Alloy
Ac(V)6~380V
Pick-up Voltage at 23°CDC≤75% AC≤80%
Drop-out Voltage at 23°CDC≥10% AC≥30%
Between Coil & Contacts≥2500VAC 50Hz/1min Leakage Current 1mA
Mechanical10^6 Times(Frequency:300 Times/1min)
Ambient Temperature-25°C ~ +55°C
Terminal TypeScrew Mounting
Protection TypeClose Type
10^5 Times(FrequencyOn 1 Time/1S,Off Time/1S)
10^6 Times(Frequency300 Times/1min)
